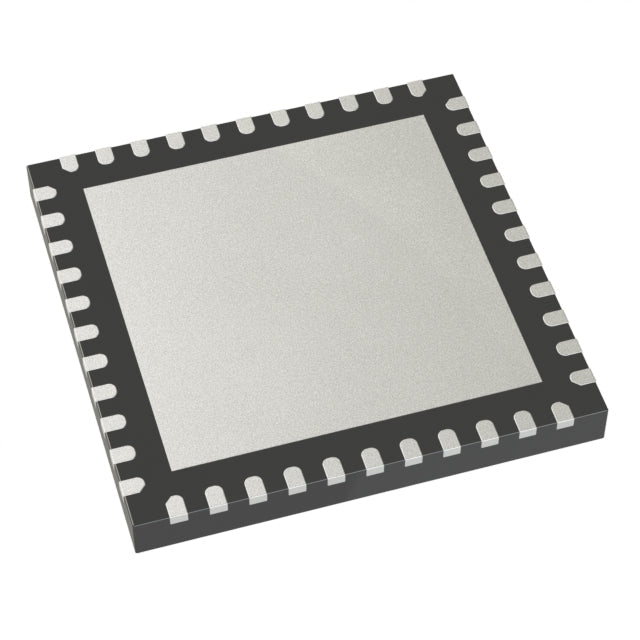

Microchip Technology ATXMEGA16C4-MH
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.80 | $11.80 |
| 15+ | $2.71 | $40.65 |
| 25+ | $2.66 | $66.50 |
| 50+ | $2.51 | $125.50 |
| 100+ | $2.21 | $221.00 |
| N+ | $0.44 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® XMEGA® C4 |
| Packaging | Tray | NULL |
| Core Processor | AVR |
| Core Size | 8/16-Bit |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 34 |
| Program Memory Size | 16KB (8K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 3.6V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 44-VQFN (7x7) |
| Package / Case | 44-VFQFN Exposed Pad |
| ROHS |  |
The Microchip ATXMEGA16C4-MH is a low-power AVR XMEGA microcontroller in a 44-VFQFN package. It operates from 1.6V to 3.6V at up to 32MHz, with 16KB flash and 2K x 8 RAM. Featuring PWM, brown-out detection, and a rich peripheral set, it is ideal for battery-powered and space-constrained applications.
- Ultra-low voltage operation (1.6V): Extends battery life in portable devices.
- 32MHz AVR core: Balanced performance for control and communication tasks.
- Compact 44-QFN package: Saves PCB space for miniaturized designs.
- Integrated PWM and WDT: Reduces external components and improves reliability.
Battery-Powered IoT Sensors
Low 1.6V operation and low-power modes extend battery life in wireless sensor nodes.
Portable Medical Devices
Compact 44-QFN package and low voltage enable small, wearable health monitors.
Industrial Sensor Interfaces
With 32MHz speed and multiple serial interfaces, it handles sensor fusion and data logging.
Consumer Electronics
Ideal for remote controls, toys, and small appliances requiring low-cost, low-power control.
Smart Home Controllers
PWM outputs can drive LEDs and small motors for smart lighting and thermostat controls.
Automotive Interior Lighting
Wide temperature range and PWM support ambient lighting control in vehicles.
- Q: What is the core architecture?
- A: It uses the AVR 8/16-bit XMEGA core, running at up to 32MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.6V to 3.6V, making it suitable for battery-powered designs.
- Q: What is the program memory size?
- A: It has 16KB (8K x 16) of flash memory.
- Q: What package is available?
- A: It comes in a 44-VFQFN exposed pad package.
- Q: Does it have PWM?
- A: Yes, it includes PWM channels.
