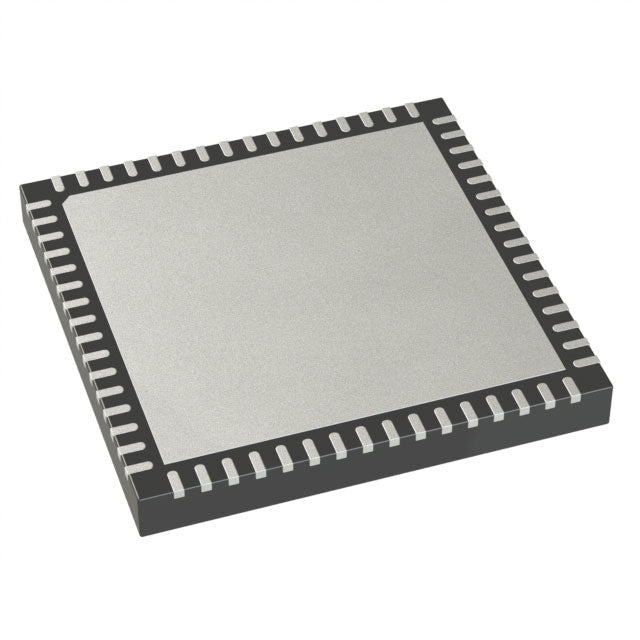

Microchip Technology ATXMEGA192A3U-MHR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.96 | $8.96 |
| 15+ | $8.68 | $130.20 |
| 25+ | $8.49 | $212.25 |
| 50+ | $8.02 | $401.00 |
| 100+ | $7.07 | $707.00 |
| N+ | $1.41 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® XMEGA® A3U |
| Packaging | Cut Tape (CT) | NULL |
| Core Processor | AVR |
| Core Size | 8/16-Bit |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 50 |
| Program Memory Size | 192KB (96K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-QFN (9x9) |
| Package / Case | 64-VFQFN Exposed Pad |
| ROHS |  |
The ATXMEGA192A3U-MHR from Microchip is a low-power AVR XMEGA microcontroller in a 64-VFQFN package. It operates at 32MHz with 192KB flash and 16K RAM. With a supply range of 1.6V to 3.6V, it integrates brown-out reset, DMA, POR, PWM, and WDT for energy-efficient embedded applications.
- Ultra-low voltage (1.6V) enables single-cell battery operation.
- DMA offloads data movement, reducing power consumption.
- 192KB flash supports complex application code.
- Compact VFQFN package saves board space.
Battery-Powered IoT Sensors
1.6V operation extends battery life; DMA transfers sensor data with minimal CPU wake time.
Portable Medical Devices
Low voltage and 32MHz speed enable real-time ECG filtering; 192KB flash stores patient logs.
Smart Home Controllers
PWM drives LED dimmers; brown-out reset ensures reliable state recovery.
Data Loggers
16K RAM buffers samples; DMA writes to external SPI flash without CPU overhead.
Wearable Fitness Trackers
VFQFN package is compact; 1.6V rail allows direct coin-cell operation.
Industrial Sensor Nodes
WDT and POR provide robustness in remote installations; 85°C rating covers most enclosures.
- Q: What is the core type?
- A: AVR (8/16-bit).
- Q: What is the max speed?
- A: 32MHz.
- Q: What is the supply voltage?
- A: 1.6V to 3.6V.
- Q: Does it have DMA?
- A: Yes, DMA is included.
