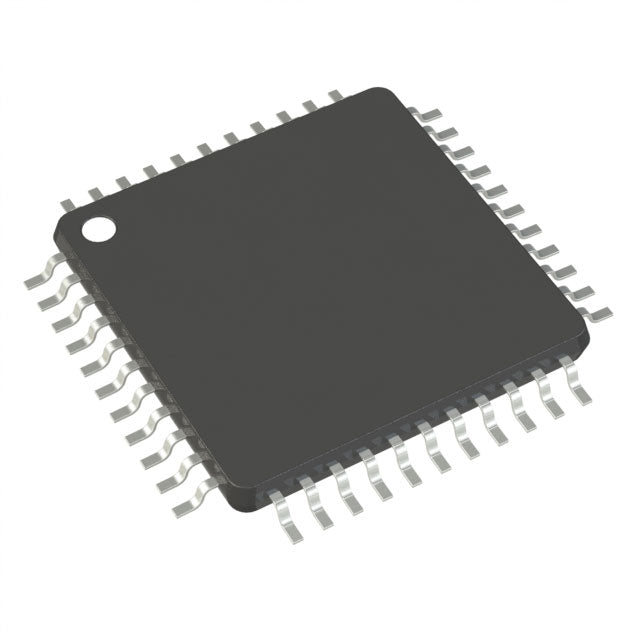

Microchip Technology ATXMEGA32C4-ANR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® XMEGA® C4 |
| Packaging | | Tape & Reel (TR) |
| Core Processor | AVR |
| Core Size | 8/16-Bit |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 34 |
| Program Memory Size | 32KB (16K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 3.6V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 44-TQFP (10x10) |
| Package / Case | 44-TQFP |
| ROHS |  |
The Microchip ATXMEGA32C4-ANR is a high-performance 8/16-bit AVR microcontroller with 32KB flash and 4KB SRAM. It operates from 1.6V to 3.6V at up to 32MHz, featuring brown-out detection, POR, PWM, and WDT. Housed in a compact 44-TQFP, it is designed for low-power industrial and consumer applications.
- Ultra-low power consumption: 1.6V operation and sleep modes extend battery life in portable devices.
- High-speed processing: 32MHz AVR core delivers fast response for real-time control.
- Robust safety features: Brown-out detect and WDT ensure reliable operation in unstable power conditions.
- Compact footprint: 44-TQFP saves PCB space for space-constrained designs.
Industrial Control Panels
With 32MHz AVR core and PWM channels, it handles real-time motor control and sensor feedback loops efficiently.
Portable Medical Devices
Low 1.6V operation and multiple sleep modes extend battery life in glucose meters and pulse oximeters.
Smart Sensor Nodes
Integrated ADC and DMA (on related models) allow continuous data acquisition without CPU intervention, reducing power.
Automotive Body Electronics
Operating from -40°C to 105°C, it suits window lift or lighting control modules in harsh environments.
Consumer Robotics
Fast PWM and WDT ensure precise servo control and system recovery in hobby and educational robots.
Building Automation
Multiple communication interfaces (USART, SPI, I2C) enable integration with HVAC and lighting systems.
- Q: What is the operating voltage range of the ATXMEGA32C4-ANR?
- A: It operates from 1.6V to 3.6V, ideal for battery-powered designs.
- Q: What is the maximum CPU speed?
- A: The AVR core runs at up to 32MHz.
- Q: How much flash memory does it have?
- A: It provides 32KB of in-system programmable flash.
- Q: What package is available?
- A: It comes in a 44-pin TQFP package.
- Q: Does it include analog peripherals?
- A: Yes, it features an ADC, DAC, and analog comparators.
