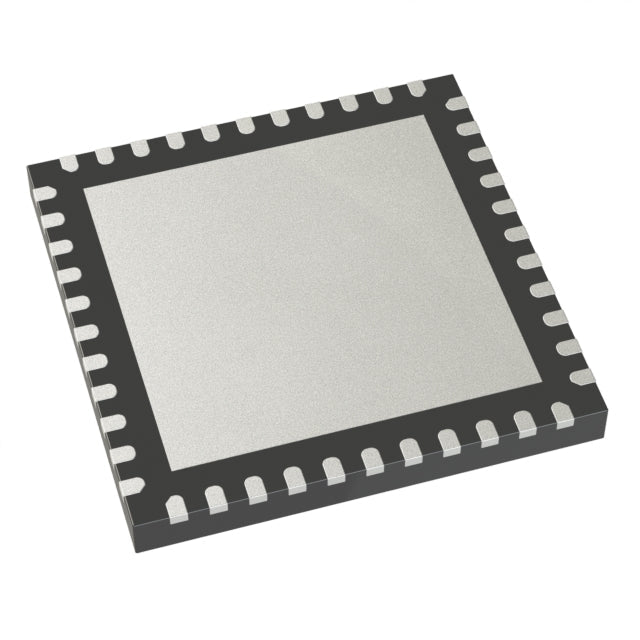

Microchip Technology ATXMEGA32C4-MHR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.24 | $4.24 |
| 15+ | $4.10 | $61.50 |
| 25+ | $4.01 | $100.25 |
| 50+ | $3.79 | $189.50 |
| 100+ | $3.35 | $335.00 |
| N+ | $0.67 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® XMEGA® C4 |
| Packaging | Cut Tape (CT) | NULL |
| Core Processor | AVR |
| Core Size | 8/16-Bit |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 34 |
| Program Memory Size | 32KB (16K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 3.6V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 44-VQFN (7x7) |
| Package / Case | 44-VFQFN Exposed Pad |
| ROHS |  |
The ATXMEGA32C4-MHR is a versatile 8/16-bit AVR microcontroller from Microchip Technology. It features a 32MHz CPU, 32KB of flash, and 4KB of SRAM. Operating from 1.6V to 3.6V, it is designed for power-sensitive applications. The 44-VFQFN package integrates PWM, POR, brown-out detection, and a watchdog timer, providing a compact and reliable solution for embedded control.
- Larger 32KB flash enables more complex firmware.
- 4KB SRAM supports richer data buffering.
- Wide voltage range (1.6V-3.6V) for flexible power design.
- High-speed 32MHz AVR core for fast processing.
- Compact 44-VFQFN package with full peripheral set.
Automotive Body Electronics
With 32KB flash and robust BOD, it handles window lift and lighting control modules.
Industrial Process Control
PWM outputs and 32MHz speed enable precise valve and pump regulation.
Consumer Appliances
Low power consumption and small footprint suit smart washing machines and dryers.
Security Systems
DMA and WDT ensure reliable operation of alarm panels and access control.
Robotics
Multiple PWM channels drive servo motors with high accuracy.
Metering Equipment
High integration reduces BOM cost for smart meters.
- Q: What is the program memory size?
- A: It has 32KB of flash memory (16K x 16).
- Q: What is the supply voltage range?
- A: It operates from 1.6V to 3.6V.
- Q: What is the maximum clock speed?
- A: The AVR core runs at up to 32MHz.
- Q: What package is this MCU available in?
- A: It comes in a 44-VFQFN exposed pad package.
- Q: Does it have PWM and watchdog timer?
- A: Yes, it includes PWM, WDT, POR, and brown-out detection.
