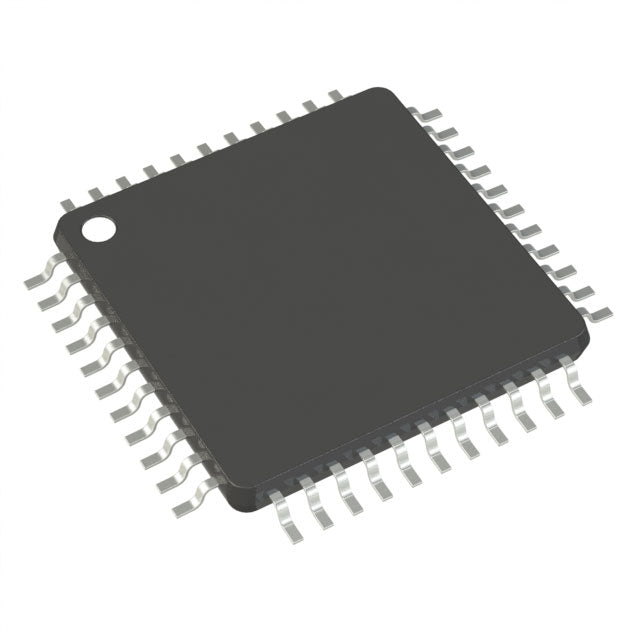

Microchip Technology ATXMEGA32D4-ANR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $12.72 | $12.72 |
| 15+ | $2.93 | $43.95 |
| 25+ | $2.86 | $71.50 |
| 50+ | $2.70 | $135.00 |
| 100+ | $2.39 | $239.00 |
| N+ | $0.48 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® XMEGA® D4 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | AVR |
| Core Size | 8/16-Bit |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 34 |
| Program Memory Size | 32KB (16K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 3.6V |
| Data Converters | A/D 12x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 44-TQFP (10x10) |
| Package / Case | 44-TQFP |
| ROHS |  |
The Microchip ATXMEGA32D4-ANR is a high-performance 8/16-bit AVR microcontroller with 32KB Flash and 4KB SRAM. Operating from 1.6V to 3.6V at up to 32MHz, it integrates Brown-out Detect/Reset, POR, PWM, and WDT for reliable operation. Housed in a 44-TQFP package, it supports industrial temperature ranges up to 105°C, making it suitable for demanding embedded applications.
- Ultra-low voltage operation: 1.6V minimum enables direct battery power without boost converters.
- High-temperature tolerance: Rated to 105°C, suitable for industrial and automotive environments.
- Rich peripheral set: PWM, WDT, and Brown-out detection reduce external component count.
- Efficient AVR core: 32MHz performance with low power consumption for energy-sensitive designs.
Battery-Powered IoT Sensors
The 1.6V minimum supply voltage allows direct operation from two AA batteries or a single Li-ion cell, extending battery life in wireless sensor nodes.
Industrial Control Panels
With a 105°C operating temperature range and robust WDT, it suits harsh industrial environments where reliability is critical.
Portable Medical Devices
Low-voltage operation and low-power sleep modes enable compact, energy-efficient designs for glucose meters and pulse oximeters.
Smart Home Automation
The 32MHz AVR core with PWM outputs can drive LED dimmers and motor controllers in smart lighting and curtain systems.
Automotive Aftermarket Modules
Wide temperature tolerance and POR ensure stable operation in automotive cabin electronics like window controllers and seat adjusters.
Data Logging Systems
4KB SRAM and 32KB Flash provide ample storage for environmental data loggers with periodic wake-up routines.
- Q: What is the operating voltage range of the ATXMEGA32D4-ANR?
- A: It operates from 1.6V to 3.6V, ideal for battery-powered designs.
- Q: What is the maximum CPU speed?
- A: The AVR core runs at up to 32MHz.
- Q: How much program memory and RAM does it have?
- A: It features 32KB Flash and 4KB SRAM.
- Q: What package is available?
- A: It comes in a 44-pin TQFP package.
- Q: Does it include safety features?
- A: Yes, it has Brown-out Detect/Reset, POR, PWM, and WDT.
