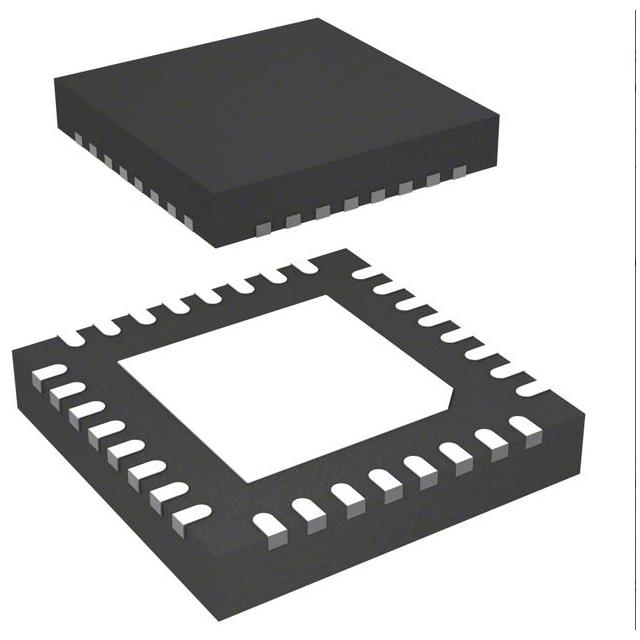

Microchip Technology ATXMEGA32E5-M4NR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® XMEGA® E5 |
| Packaging | | Tape & Reel (TR) |
| Core Processor | AVR |
| Core Size | 8/16-Bit |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 26 |
| Program Memory Size | 32KB (16K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-UQFN (4x4) |
| Package / Case | 32-UFQFN Exposed Pad |
| ROHS |  |
The Microchip ATXMEGA32E5-M4NR is a high-performance 8/16-bit AVR microcontroller with 32KB flash and 4KB SRAM. It operates at up to 32MHz with a supply voltage from 1.6V to 3.6V. This device integrates DMA, PWM, brown-out detection, and a watchdog timer, making it ideal for real-time embedded control in a compact 32-UFQFN package.
- Ultra-low power operation: 1.6V minimum supply extends battery life in portable devices.
- High-speed AVR core: 32MHz execution for time-critical control loops.
- Integrated DMA: Reduces CPU load during data transfers, improving system efficiency.
- Compact package: 32-UFQFN saves PCB space for space-constrained designs.
- Robust protection: POR, BOD, and WDT enhance system reliability in harsh environments.
Battery-Powered IoT Sensors
The 1.6V minimum supply and low-power sleep modes enable long-lasting operation in wireless sensor nodes.
Motor Control for Drones
With 32MHz speed and PWM channels, it can generate precise control signals for brushless DC motors.
Portable Medical Devices
The small 32-UFQFN package and wide temperature range (-40°C to 105°C) suit compact, reliable health monitors.
Industrial Automation
DMA and WDT ensure reliable data transfer and system recovery in noisy factory environments.
Smart Home Controllers
Its rich peripheral set (POR, BOD) simplifies interfacing with sensors and actuators in home automation hubs.
Automotive Body Electronics
The robust operating temperature and voltage range make it suitable for in-vehicle control modules.
- Q: What is the operating voltage range of the ATXMEGA32E5-M4NR?
- A: It operates from 1.6V to 3.6V, ideal for battery-powered designs.
- Q: What is the maximum CPU speed?
- A: The AVR core runs at up to 32MHz.
- Q: How much flash memory does it have?
- A: It provides 32KB of in-system programmable flash.
- Q: What package is available?
- A: It comes in a compact 32-UFQFN exposed pad package.
- Q: Does it include DMA and PWM controllers?
- A: Yes, it features DMA, PWM, POR, BOD, and WDT.
