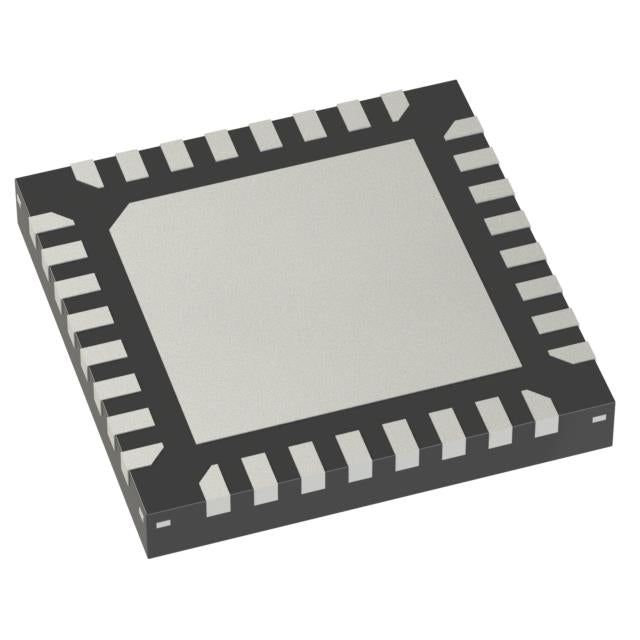

Microchip Technology ATXMEGA32E5-MNR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.39 | $3.39 |
| 15+ | $3.28 | $49.20 |
| 25+ | $3.21 | $80.25 |
| 50+ | $3.03 | $151.50 |
| 100+ | $2.68 | $268.00 |
| N+ | $0.54 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® XMEGA® E5 |
| Packaging | Cut Tape (CT) | NULL |
| Core Processor | AVR |
| Core Size | 8/16-Bit |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 26 |
| Program Memory Size | 32KB (16K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-VQFN (5x5) |
| Package / Case | 32-VFQFN Exposed Pad |
| ROHS |  |
The ATXMEGA32E5-MNR from Microchip Technology is a high-performance 8/16-bit AVR microcontroller designed for demanding environments. Running at up to 32MHz, it offers 32KB of flash and 4KB of SRAM. Its supply voltage range of 1.6V to 3.6V supports low-power and battery applications. The 32-VFQFN package with exposed pad is compact and thermally efficient. Integrated features include Brown-out Detect/Reset, DMA, POR, PWM, and WDT, making it a robust choice for automotive, industrial, and IoT applications.
- High Temperature Tolerance: -40°C to 105°C for automotive and industrial use.
- Low Voltage Operation: Down to 1.6V for single-cell battery designs.
- Fast AVR Core: 32MHz provides ample processing power.
- Integrated Safety: Brown-out detection and WDT enhance reliability.
- Compact Size: 32-VFQFN saves PCB space.
Automotive Lighting Control
The 105°C rating and PWM support make it suitable for LED headlamp and interior lighting modules.
Industrial Sensor Interface
With DMA and brown-out detection, it reliably reads and processes analog sensors in factory automation.
Battery-Powered IoT Device
1.6V operation allows direct connection to single-cell batteries, extending device life.
Motor Control for Drones
32MHz AVR core and PWM channels enable precise ESC (Electronic Speed Controller) operation.
Smart Agriculture Node
Compact 32-VFQFN package and low power make it ideal for soil moisture and weather monitoring.
Portable Test Equipment
Wide voltage range and WDT ensure stable operation in handheld multimeters.
- Q: What is the core of the ATXMEGA32E5-MNR?
- A: It uses the AVR core, running at up to 32MHz.
- Q: What is the operating temperature range?
- A: It is rated for -40°C to 105°C.
- Q: How much flash and RAM does it have?
- A: It has 32KB of flash (16K x 16) and 4KB of SRAM.
- Q: What voltage does it support?
- A: It operates from 1.6V to 3.6V.
- Q: What package is available?
- A: It comes in a 32-VFQFN exposed pad package.
