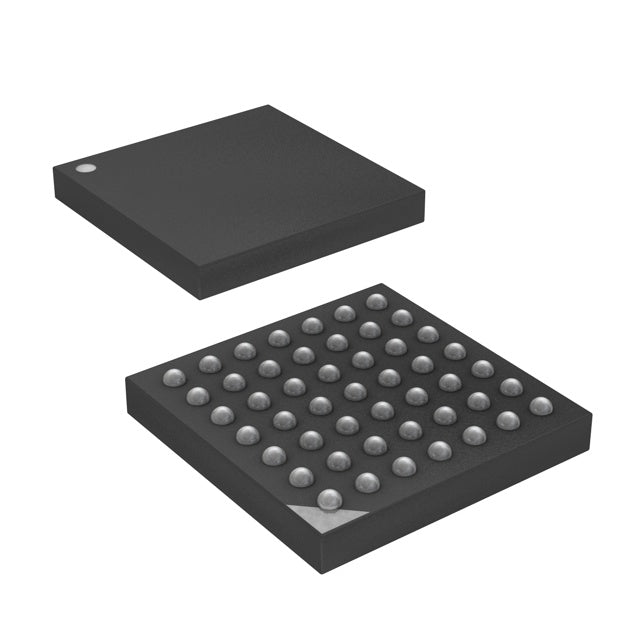

Microchip Technology ATXMEGA64D4-CU
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $16.96 | $16.96 |
| 15+ | $3.90 | $58.50 |
| 25+ | $3.82 | $95.50 |
| 50+ | $3.60 | $180.00 |
| 100+ | $3.18 | $318.00 |
| N+ | $0.64 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® XMEGA® D4 |
| Packaging | Tray | NULL |
| Core Processor | AVR |
| Core Size | 8/16-Bit |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 34 |
| Program Memory Size | 64KB (32K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 3.6V |
| Data Converters | A/D 12x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 49-VFBGA (5x5) |
| Package / Case | 49-VFBGA |
| ROHS |  |
The ATXMEGA64D4 is a low-power 8/16-bit AVR microcontroller from Microchip, featuring 64KB flash and 4KB SRAM. It operates from 1.6V to 3.6V at 32MHz, making it ideal for battery-operated devices. The 49-VFBGA package offers a minimal footprint. It includes PWM, brown-out detection, and watchdog timer for reliable embedded control.
- Ultra-low voltage (1.6V) extends battery life in single-cell applications.
- 49-VFBGA package reduces PCB area by up to 60% compared to QFP.
- 32MHz AVR core provides efficient code density for 8-bit applications.
- Integrated PWM and WDT reduce external component count.
Wearable Health Monitor
1.6V operation and 49-VFBGA package enable ultra-thin, low-power designs for heart-rate and activity tracking.
IoT End Node
32MHz AVR core with 64KB flash handles Zigbee or proprietary RF stacks while consuming minimal power.
Portable Instrumentation
High-resolution ADC and PWM allow precise sensor excitation and measurement in handheld meters.
Consumer Electronics Remote
Low voltage and small footprint fit into compact remote controls with IR and RF transmission.
Smart Battery Pack
1.6V-3.6V range monitors cell voltage directly and communicates via I2C to host.
LED Wearable Display
PWM outputs drive RGB LEDs with 32MHz speed for smooth animations.
- Q: What is the core architecture?
- A: 8/16-bit AVR core running at 32MHz.
- Q: What voltage does it need?
- A: 1.6V to 3.6V, ideal for battery-powered devices.
- Q: How much program memory?
- A: 64KB flash (32K x 16).
- Q: What package is this?
- A: 49-VFBGA (very thin fine-pitch ball grid array).
- Q: Does it have PWM?
- A: Yes, it includes PWM channels for motor and lighting control.
