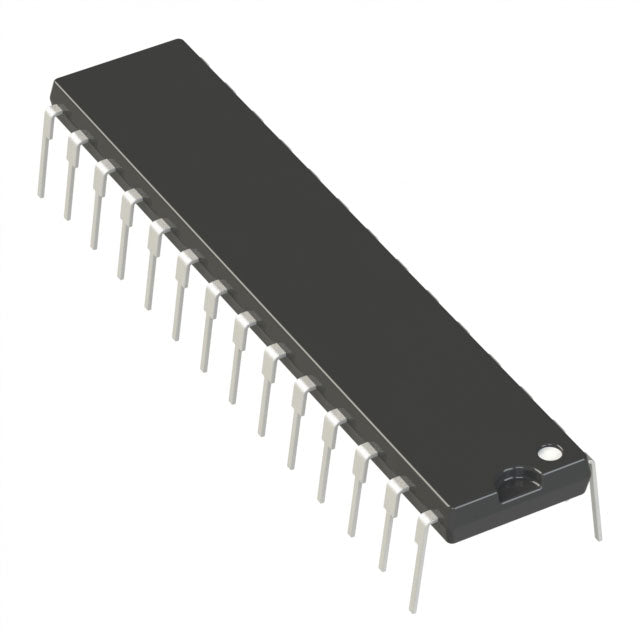

Microchip Technology AVR16DD28-E/SP
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 8.05 | Dhs. 8.05 |
| 15+ | Dhs. 7.79 | Dhs. 116.85 |
| 25+ | Dhs. 7.62 | Dhs. 190.50 |
| 50+ | Dhs. 7.20 | Dhs. 360.00 |
| 100+ | Dhs. 6.35 | Dhs. 635.00 |
| N+ | Dhs. 1.27 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | AVR® DD |
| Packaging | Tube | Tube |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Connectivity | I2C, IrDA, LINbus, RS-485, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 22 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 19x12b SAR; D/A 1x10b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Supplier Device Package | 28-SPDIP |
| Package / Case | 28-DIP (0.300", 7.62mm) |
| ROHS |  |
Product Overview
The AVR16DD28-E/SP is a high-performance 8-bit AVR microcontroller from Microchip Technology's AVR® DD series. Featuring 16KB of Flash memory, 2KB RAM, and 256 bytes of EEPROM, this MCU operates at speeds up to 24MHz and supports a wide voltage range of 1.8V to 5.5V, making it ideal for battery-powered and industrial applications.
Key Features & Applications
- Core Performance: 8-bit AVR core running at 24MHz for efficient real-time processing
- Memory: 16KB Flash program memory, 2KB SRAM, 256-byte EEPROM for data retention
- Connectivity: Multiple communication interfaces including I2C, SPI, UART/USART, RS-485, LINbus, and IrDA
- Analog Capabilities: 19-channel 12-bit SAR ADC and 1-channel 10-bit DAC for precision analog signal processing
- I/O Flexibility: 22 programmable I/O pins with PWM support for motor control and LED dimming
- Robust Design: Built-in brown-out detection, power-on reset, watchdog timer, and wide operating temperature range (-40°C to 125°C)
- Easy Integration: Through-hole 28-DIP package for prototyping and legacy system upgrades
Typical Applications
This microcontroller is perfectly suited for embedded systems, IoT devices, industrial automation, automotive electronics, sensor networks, motor control systems, and battery-powered portable devices.
