Microchip Technology AX500-FG676I

Product Overview

The AX500-FG676I is a high-performance FPGA from Microchip Technology's Axcelerator series, engineered for demanding applications in aerospace, automotive, industrial, medical, and telecommunications sectors. This field-programmable gate array delivers exceptional processing power with 500,000 gates and 336 I/O pins in a compact 676-FBGA package, making it ideal for complex embedded systems requiring long lifecycle support and complete component traceability.

Key Features & Benefits

• High Logic Density: 8,064 LABs/CLBs provide extensive programmable logic resources for complex digital designs, signal processing, and custom hardware acceleration
• Robust Memory Architecture: 73,728 total RAM bits enable efficient data buffering, FIFO implementation, and on-chip storage for high-performance applications
• Extensive I/O Capability: 336 I/O pins support high-bandwidth interfaces, multi-protocol connectivity, and flexible pin assignment for diverse system integration requirements
• Industrial-Grade Reliability: Extended operating temperature range of -40°C to 85°C ensures reliable performance in harsh environments including automotive under-hood, aerospace avionics, and industrial control systems
• Optimized Package Design: 676-FBGA (27x27mm) surface mount package enables automated assembly, reduces board space requirements, and provides excellent thermal performance
• Stable Power Architecture: 1.425V to 1.575V core voltage range provides consistent operation with minimal power fluctuation sensitivity and simplified power supply design
• Long Lifecycle Availability: Backed by Microchip's commitment to extended product availability for mission-critical applications requiring multi-year design-in support

Technical Specifications Highlights

• Logic Capacity: 500,000 system gates for implementing complex digital logic functions
• Configurable Logic Blocks: 8,064 LABs/CLBs for flexible logic implementation
• Embedded Memory: 73,728 RAM bits for efficient data storage and buffering
• User I/O: 336 pins for maximum connectivity and interface flexibility

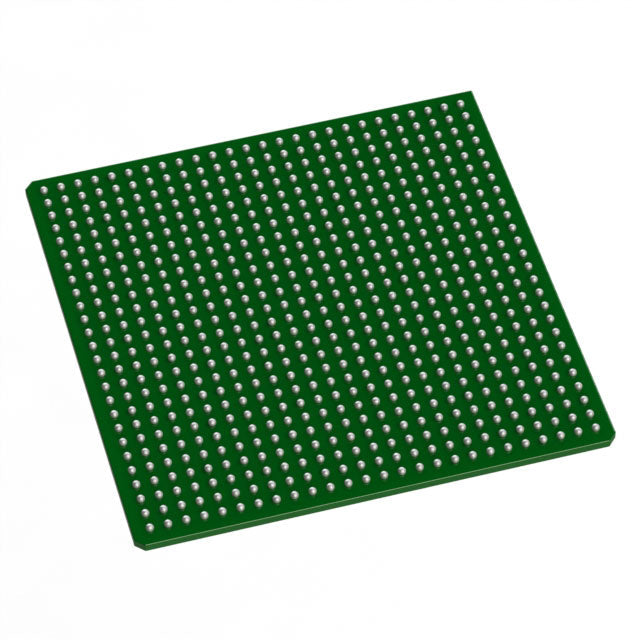

• Package Type: 676-pin Fine-Pitch Ball Grid Array (FBGA), 27mm x 27mm footprint
• Core Voltage: 1.5V nominal (1.425V to 1.575V tolerance)
• Temperature Range: Industrial grade -40°C to +85°C ambient
• Mounting: Surface mount technology compatible

Target Applications

The AX500-FG676I is specifically designed for high-reliability applications across multiple industries:

• Aerospace & Defense: Flight control systems, avionics, radar signal processing, secure communications, and mission-critical embedded systems
• Automotive: Advanced Driver Assistance Systems (ADAS), engine control units, infotainment systems, sensor fusion, and autonomous driving platforms
• Industrial Automation: Programmable logic controllers (PLCs), motion control, machine vision, robotics, and process control systems
• Medical Equipment: Diagnostic imaging systems, patient monitoring devices, laboratory instrumentation, and medical imaging signal processing
• Telecommunications: Base station controllers, network infrastructure, protocol conversion, software-defined radio, and high-speed data processing
• Test & Measurement: Oscilloscopes, logic analyzers, spectrum analyzers, and automated test equipment requiring custom signal processing

Design Resources & Support

HQICKEY provides comprehensive design-in support for the AX500-FG676I including:

• Complete datasheets and technical documentation
• Reference designs and application notes
• Development tools and software support
• Technical consultation for design optimization
• Sample availability for prototyping and evaluation
• Volume pricing for production quantities

Quality Assurance & Compliance

All AX500-FG676I components are sourced exclusively through authorized distribution channels with complete chain-of-custody documentation. Every unit includes:

• Full Traceability: Lot codes, date codes, and manufacturing provenance documentation
• RoHS Compliance: Meets EU Restriction of Hazardous Substances directive requirements
• REACH Compliance: Compliant with European chemical safety regulations
• Quality Certifications: ISO-certified manufacturing and handling processes
• Authenticity Guarantee: 100% genuine Microchip Technology components with anti-counterfeit verification

Ordering & Availability

The AX500-FG676I is available in tray packaging for volume production. Lead times vary based on order quantity and current inventory levels. Contact our sales team for:

• Current stock availability and lead times
• Volume pricing and quantity discounts
• Custom packaging and labeling options
• Scheduled delivery programs for production planning
• Technical pre-sales support and design consultation

Why Choose HQICKEY?

As a trusted distributor of premium semiconductor components, HQICKEY offers:

• Authorized Distribution: Direct relationships with leading manufacturers ensure genuine components
• Technical Expertise: Engineering support team with deep FPGA and programmable logic experience
• Global Logistics: Efficient shipping to aerospace, automotive, industrial, medical, and telecom customers worldwide
• Quality Assurance: Rigorous inspection and handling procedures maintain component integrity
• Long-Term Partnership: Committed to supporting your product lifecycle from design-in through end-of-life

Related Products & Resources

Explore our comprehensive selection of FPGAs Field Programmable Gate Array ICs for additional programmable logic solutions across various gate counts, I/O configurations, and package options. Browse the complete HQICKEY catalog for our full range of premium semiconductor components including microcontrollers, analog ICs, power management, and passive components. Stay informed with the latest industry insights, product announcements, technical articles, and application notes on our News & Technical Blog.

Technical Support

For technical questions, design assistance, or application support, our engineering team is ready to help you successfully integrate the AX500-FG676I into your design. Contact us for expert guidance on FPGA selection, pin planning, power supply design, thermal management, and programming resources.
