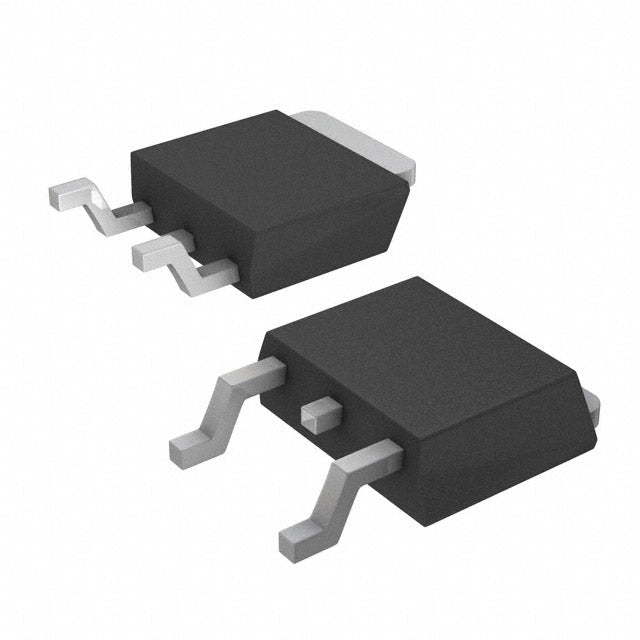

Diodes Incorporated AZ1117ID-ADJTRG1
Regular price
$0.73
Regular price
$0.77
Sale price
$0.73
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.73 | $0.73 |
| 15+ | $0.71 | $10.65 |
| 25+ | $0.69 | $17.25 |
| 50+ | $0.65 | $32.50 |
| 100+ | $0.58 | $58.00 |
| N+ | $0.12 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Diodes Incorporated |
| Product Series | AZ1117I |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | 1.25V |
| Voltage - Output (Max) | 13.6V |
| Voltage Dropout (Max) | 1.4V @ 800mA |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 5 mA |
| Current - Supply (Max) | - |
| PSRR | 70dB (120Hz) |
| Control Features | - |
| Protection Features | Thermal Shutdown |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252-3 |
| ROHS |  |
AZ1117ID-ADJTRG1.pdf
×
