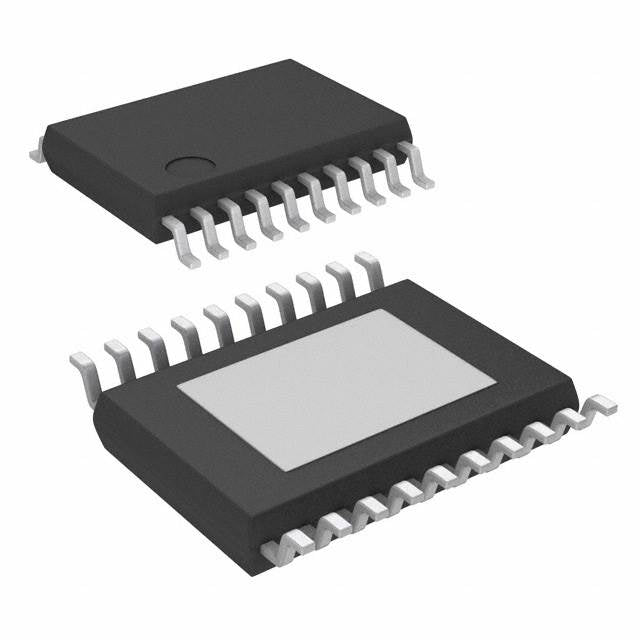

Texas Instruments BQ24002PWP
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.45 | $10.45 |
| 15+ | $10.12 | $151.80 |
| 25+ | $9.90 | $247.50 |
| 50+ | $9.35 | $467.50 |
| 100+ | $8.25 | $825.00 |
| N+ | $1.65 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tube |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant |
| Programmable Features | Current, Timer |
| Fault Protection | Over Temperature |
| Charge Current - Max | 1.2A |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 10V |
| Interface | - |
| Operating Temperature | -40°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-HTSSOP |
| ROHS |  |
The BQ24002PWP from Texas Instruments is a linear battery charger designed for single-cell Lithium Ion batteries. It provides a charge current up to 1.2A and a regulated battery voltage of 4.2V. The device includes over-temperature protection and operates over an ambient temperature range of -40°C to 70°C. It is available in a 20-PowerTSSOP package, suitable for space-constrained consumer and commercial applications.
- Precise single-cell charging: Delivers a regulated 4.2V for Li-Ion cells, ensuring safe and complete charging.
- Thermal protection: Built-in over-temperature protection prevents damage during charging.
- Wide ambient range: Operates from -40°C to 70°C, covering most commercial and indoor applications.
- Compact PowerTSSOP package: Saves PCB area for portable designs.
Portable Consumer Electronics
For single-cell Li-Ion devices like smartphones and tablets, the BQ24002PWP provides a reliable 1.2A charge current with over-temperature protection for safe operation in consumer environments.
Handheld Medical Devices
In controlled indoor settings, this charger supports single-cell Li-Ion packs in glucose monitors or portable diagnostic tools, ensuring safe charging within a -40°C to 70°C ambient range.
Wireless Headsets and Wearables
Compact devices benefit from the 20-PowerTSSOP package, delivering a precise 4.2V charge voltage for small Li-Ion cells.
Smart Home Sensors
For battery-powered IoT sensors operating in office or residential environments, the BQ24002PWP offers a simple, protected charging solution.
Portable Power Banks
Single-cell power banks can use this charger to safely manage 1.2A charging with thermal shutdown protection.
- Q: What battery chemistry does the BQ24002PWP support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 1.2A.
- Q: What is the battery voltage?
- A: The battery voltage is 4.2V.
- Q: What fault protection is included?
- A: It includes over-temperature protection.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 70°C (TA).
