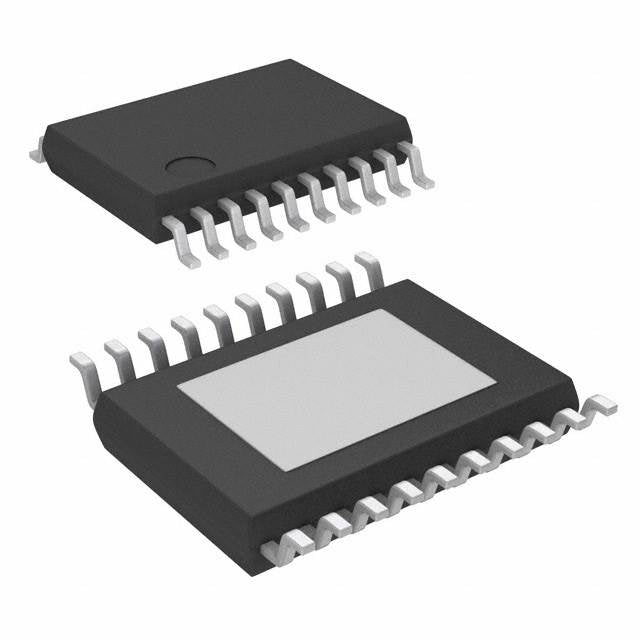

Texas Instruments BQ24005PWP
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.80 | $5.80 |
| 15+ | $5.62 | $84.30 |
| 25+ | $5.50 | $137.50 |
| 50+ | $5.19 | $259.50 |
| 100+ | $4.58 | $458.00 |
| N+ | $0.92 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tube |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 2 |
| Current - Charging | Constant |
| Programmable Features | Current, Timer |
| Fault Protection | Over Temperature |
| Charge Current - Max | 1.2A |
| Battery Pack Voltage | 8.4V |
| Voltage - Supply (Max) | 10V |
| Interface | - |
| Operating Temperature | -40°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-HTSSOP |
| ROHS |  |
The BQ24005PWP from Texas Instruments is a linear charge management IC designed for 2-cell Lithium Ion battery packs. It provides a charge current up to 1.2A and targets a battery pack voltage of 8.4V. The device includes over-temperature protection for enhanced safety. Housed in a 20-PowerTSSOP package, it is suitable for a range of dual-cell portable and backup applications.
- Dual-Cell Support: Specifically designed for 2-cell Li-Ion packs, simplifying system design for higher voltage applications.
- Integrated Protection: Includes over-temperature protection to prevent damage during charging.
- Adequate Charge Current: 1.2A charge current provides a good balance between charging speed and thermal management.
- Reliable Operation: Operates over a -40°C to 70°C (TA) temperature range.
Dual-Cell Portable Electronics
Designed for 2-cell Li-Ion packs, it is ideal for larger portable devices like high-performance laptops, portable DVD players, and professional cameras that require an 8.4V supply.
Battery Backup Systems
Provides a reliable charging solution for 2-cell backup batteries used in security systems, POS terminals, and network equipment.
Power Tools
Suitable for compact power tools that utilize dual-cell Lithium Ion battery packs, offering a charge current up to 1.2A.
Medical Carts and Equipment
Can be used in portable medical carts or diagnostic equipment that operate on dual-cell Li-Ion batteries.
Robotics and Drones
Ideal for smaller robotics and drone applications that use 2S Li-Ion battery configurations for higher voltage.
- Q: What battery chemistry does the BQ24005PWP support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports 2 cells in series.
- Q: What is the maximum charge current?
- A: The maximum charge current is 1.2A.
- Q: What is the battery pack voltage?
- A: The battery pack voltage is 8.4V.
- Q: What fault protection is included?
- A: It includes Over Temperature protection.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 70°C (TA).
