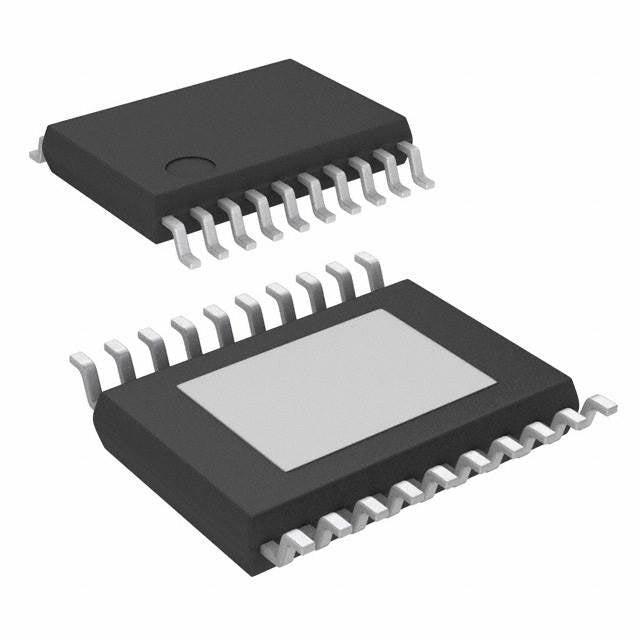

Texas Instruments BQ24008PWP
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.03 | $6.03 |
| 15+ | $5.84 | $87.60 |
| 25+ | $5.72 | $143.00 |
| 50+ | $5.40 | $270.00 |
| 100+ | $4.76 | $476.00 |
| N+ | $0.95 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tube | |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant |
| Programmable Features | Current, Timer |
| Fault Protection | Over Temperature |
| Charge Current - Max | 1.2A |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 10V |
| Interface | - |
| Operating Temperature | -40°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-HTSSOP |
| ROHS |  |
The BQ24008PWP from Texas Instruments is a Lithium Ion battery charger designed for single-cell packs with a 4.2V output. It delivers a charge current of up to 1.2A and includes over-temperature protection for safe operation. Operating from -40°C to 70°C, this charger is suited for consumer electronics and portable devices in controlled environments. The 20-PowerTSSOP package provides a robust solution for space-conscious PCB designs.
- High charge current: 1.2A enables faster charging for consumer devices.
- Over-temperature protection: Prevents overheating during extended charging sessions.
- Single-cell optimization: Designed specifically for 4.2V Lithium Ion packs, ensuring accurate voltage.
- PowerTSSOP package: Offers good thermal performance for moderate power dissipation.
Consumer Electronics
The 1.2A charge current and 4.2V output are ideal for smartphones, tablets, and digital cameras with single-cell Lithium Ion batteries.
Portable Gaming Devices
With over-temperature protection, this charger ensures safe charging in handheld gaming consoles that generate heat during use.
Bluetooth Speakers
The PowerTSSOP package and 1.2A capability make it suitable for portable speakers requiring reliable charging in indoor environments.
Smart Home Devices
For smart locks and sensors with backup batteries, this charger provides consistent charging within a controlled temperature range.
Office Equipment
Cordless phones and desktop peripherals benefit from the dependable charging of single-cell packs in commercial settings.
- Q: What battery chemistry does the BQ24008PWP support?
- A: It is designed for Lithium Ion batteries.
- Q: How many battery cells can this charger handle?
- A: It supports 1-cell battery packs.
- Q: What is the maximum charge current?
- A: The maximum charge current is 1.2A.
- Q: What is the battery pack voltage for this charger?
- A: The battery pack voltage is 4.2V.
- Q: What fault protections are included?
- A: It includes Over Temperature protection.
- Q: What package is the BQ24008PWP available in?
- A: It comes in a 20-PowerTSSOP (0.173", 4.40mm Width) package.
BQ24008PWP.pdf
- Q: What battery chemistry does the BQ24008PWP support?
- A: It is designed for Lithium Ion batteries.
- Q: How many battery cells can this charger handle?
- A: It supports 1-cell battery packs.
- Q: What is the maximum charge current?
- A: The maximum charge current is 1.2A.
- Q: What is the battery pack voltage for this charger?
- A: The battery pack voltage is 4.2V.
- Q: What fault protections are included?
- A: It includes Over Temperature protection.
- Q: What package is the BQ24008PWP available in?
- A: It comes in a 20-PowerTSSOP (0.173", 4.40mm Width) package.
