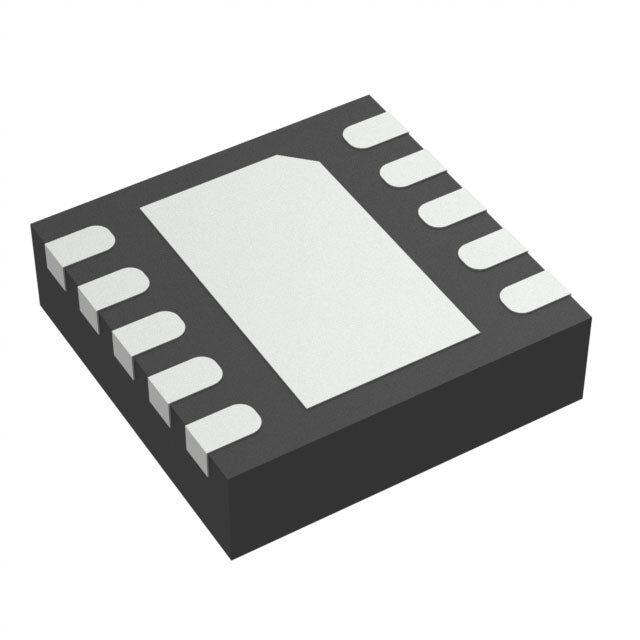

Texas Instruments BQ24013DRCR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.76 | $2.76 |
| 15+ | $2.68 | $40.20 |
| 25+ | $2.62 | $65.50 |
| 50+ | $2.47 | $123.50 |
| 100+ | $2.18 | $218.00 |
| N+ | $0.44 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | bqTINY™ |
| Packaging | Marketplace | Cut Tape (CT) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Timer |
| Fault Protection | Short Circuit |
| Charge Current - Max | 1A |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 16.5V |
| Interface | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-VSON (3x3) |
| ROHS |  |
The BQ24013DRCR is a linear battery charger IC from Texas Instruments, tailored for single-cell Lithium Ion/Polymer batteries. It provides a charge current of up to 1A and regulates the battery to a precise 4.2V. The device includes short-circuit protection and is available in a compact 10-VFDFN package, making it an excellent choice for portable consumer electronics.
- Precision Voltage Regulation: Ensures a safe and accurate 4.2V charge for single-cell Li-Ion/Polymer batteries.
- Integrated Safety: Built-in short-circuit protection safeguards the battery and the system.
- High-Temperature Tolerance: Rated for junction temperatures up to 125°C, suitable for demanding applications.
- Space-Saving Design: The 10-VFDFN package is optimized for compact PCB layouts.
Smartphones and Tablets
Provides a dedicated 1A charge solution for single-cell Li-Ion packs in mobile devices, ensuring safe and efficient charging with short-circuit protection.
Portable Media Players
Ideal for PMPs and handheld gaming consoles, offering a compact charging solution in a 10-VFDFN package.
Digital Cameras
Supports reliable charging of Li-Ion batteries in cameras, with a wide junction temperature range for varied operating conditions.
Wireless Headsets
Enables a simple, protected charging circuit for single-cell batteries in Bluetooth earbuds and headsets.
IoT Devices
Suitable for smart home sensors and IoT nodes that require a robust, short-circuit-protected charging interface for their 4.2V battery packs.
- Q: What battery chemistry is the BQ24013DRCR for?
- A: It is designed for Lithium Ion/Polymer batteries.
- Q: How many cells does it support?
- A: It supports a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 1A.
- Q: What is the target battery voltage?
- A: The battery voltage is regulated to 4.2V.
- Q: What protection features are available?
- A: It includes Short Circuit protection.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C (junction temperature).
