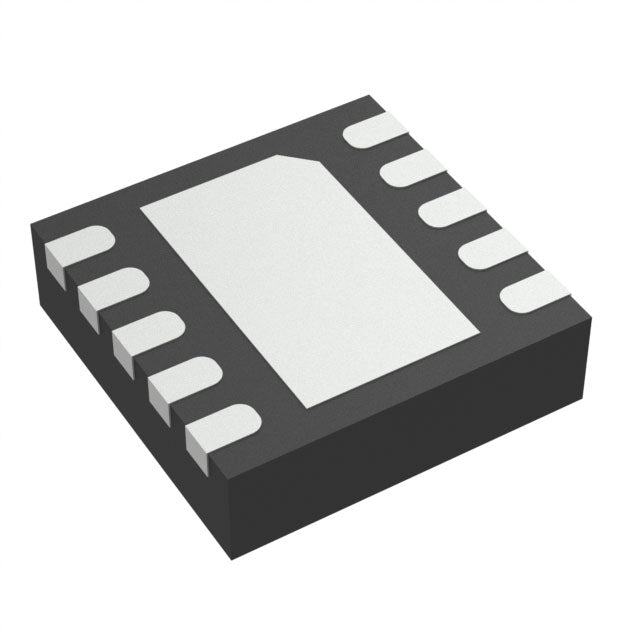

Texas Instruments BQ24060DRCR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.32 | $2.32 |
| 15+ | $2.24 | $33.60 |
| 25+ | $2.20 | $55.00 |
| 50+ | $2.07 | $103.50 |
| 100+ | $1.83 | $183.00 |
| N+ | $0.37 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Cut Tape (CT) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Timer |
| Fault Protection | Over Temperature, Over Voltage, Short Circuit |
| Charge Current - Max | 1A |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 16.5V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-VSON (3x3) |
| ROHS |  |
The BQ24060DRCR from Texas Instruments is a linear single-cell Lithium Ion/Polymer battery charger. It provides a charge current up to 1A and a regulated output voltage of 4.2V. This device integrates multiple safety features including over-temperature, over-voltage, and short-circuit protection. Packaged in a 10-VFDFN, it operates over an industrial temperature range of -40°C to 85°C, making it suitable for a wide range of portable and industrial applications.
- Comprehensive protection: Over-temperature, over-voltage, and short-circuit safeguards ensure safe operation.
- Industrial temperature range: Operates reliably from -40°C to 85°C.
- Compact package: 10-VFDFN saves PCB space for miniaturized designs.
- High charge current: Up to 1A for faster charging of single-cell batteries.
Single-Cell Li-Ion Portable Electronics
Ideal for smartphones, tablets, and portable media players, this charger delivers up to 1A to a 4.2V single-cell Li-Ion/Polymer battery.
Wearable Technology
Its compact 10-VFDFN package and comprehensive protection features make it suitable for smartwatches and fitness trackers.
Industrial Handheld Devices
With an industrial temperature range of -40°C to 85°C, it is reliable for rugged handheld scanners and field computers.
Medical Implantable Devices
The triple protection (over-temperature, over-voltage, short circuit) ensures safe charging for critical medical devices.
Consumer Drones and Cameras
For compact drones and action cameras, this charger provides a dependable charging solution with a small footprint.
- Q: What battery chemistry does the BQ24060DRCR support?
- A: It is designed for Lithium Ion/Polymer batteries.
- Q: How many cells can this charger handle?
- A: It supports a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 1A.
- Q: What is the battery voltage?
- A: The battery voltage is 4.2V.
- Q: What fault protections are included?
- A: It includes Over Temperature, Over Voltage, and Short Circuit protection.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C (TA).
