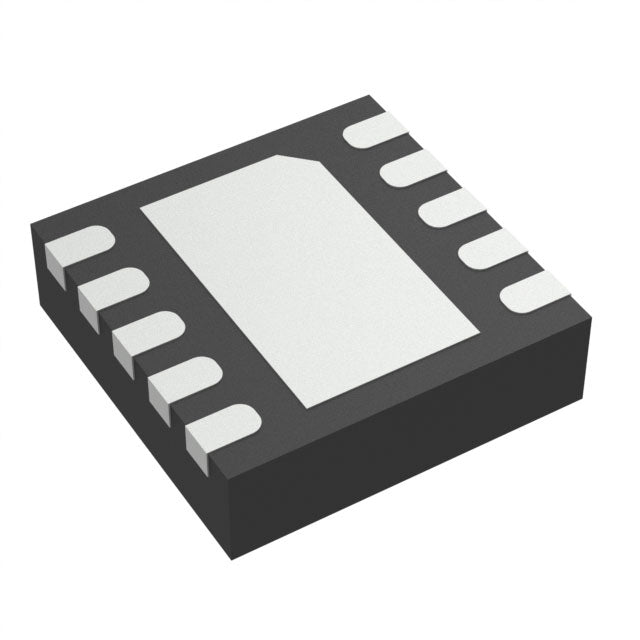

Texas Instruments BQ24061DRCT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.85 | $2.85 |
| 15+ | $2.76 | $41.40 |
| 25+ | $2.70 | $67.50 |
| 50+ | $2.55 | $127.50 |
| 100+ | $2.25 | $225.00 |
| N+ | $0.45 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Cut Tape (CT) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Timer |
| Fault Protection | Over Temperature, Over Voltage, Short Circuit |
| Charge Current - Max | 1A |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 16.5V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-VSON (3x3) |
| ROHS |  |
The Texas Instruments BQ24061DRCT is a linear battery charger designed for single-cell Lithium Ion and Lithium Polymer batteries. It provides a charge current up to 1A and supports a battery voltage of 4.2V. The device includes Over Temperature, Over Voltage, and Short Circuit protection. Housed in a compact 10-VFDFN package, it is suitable for a wide range of portable consumer electronics.
- Optimal Charge Current: 1A charging capability is well-suited for standard single-cell Li-Ion batteries, balancing speed and safety.
- Integrated Safety: Over Temperature, Over Voltage, and Short Circuit protection ensure reliable operation.
- Wide Temperature Range: Operates from -40°C to 85°C (TA), making it suitable for various environments.
- Compact Package: The 10-VFDFN with Exposed Pad aids in thermal dissipation and saves board space.
Digital Cameras
The BQ24061DRCT's 1A charge current provides a good balance between charging speed and heat generation, making it suitable for the Li-Ion batteries in digital cameras.
Portable Gaming Consoles
Handheld gaming devices benefit from the robust Over Temperature and Over Voltage protection, ensuring safe charging during extended use and fast recharges between gaming sessions.
Bluetooth Speakers
For portable speakers, this charger's 4.2V output is standard for single-cell Li-Ion packs, and the compact 10-VFDFN package simplifies PCB layout in tight enclosures.
E-Readers
The low quiescent current and reliable charging profile make it an excellent choice for e-readers, which require long battery life and safe, consistent charging.
Smart Home Hubs
In battery-backed smart home devices, the integrated protections ensure safe operation and extend the life of the backup battery.
- Q: What battery chemistries are supported?
- A: It supports Lithium Ion and Lithium Polymer batteries.
- Q: How many cells can it charge?
- A: It is designed for 1 cell.
- Q: What is the maximum charge current?
- A: The maximum charge current is 1A.
- Q: What is the battery voltage?
- A: The battery voltage is 4.2V.
- Q: What fault protections are included?
- A: It includes Over Temperature, Over Voltage, and Short Circuit protection.
- Q: What is the package type?
- A: It comes in a 10-VFDFN Exposed Pad package.
