Texas Instruments BQ24076RGTR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.73 | $2.73 |
| 15+ | $2.64 | $39.60 |
| 25+ | $2.58 | $64.50 |
| 50+ | $2.44 | $122.00 |
| 100+ | $2.15 | $215.00 |
| N+ | $0.43 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant |
| Programmable Features | Current, Timer |
| Fault Protection | Over Temperature, Over Voltage, Reverse Current, Short Circuit |
| Charge Current - Max | 1.5A |
| Battery Pack Voltage | 4.4V |
| Voltage - Supply (Max) | 6.4V |
| Interface | USB |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

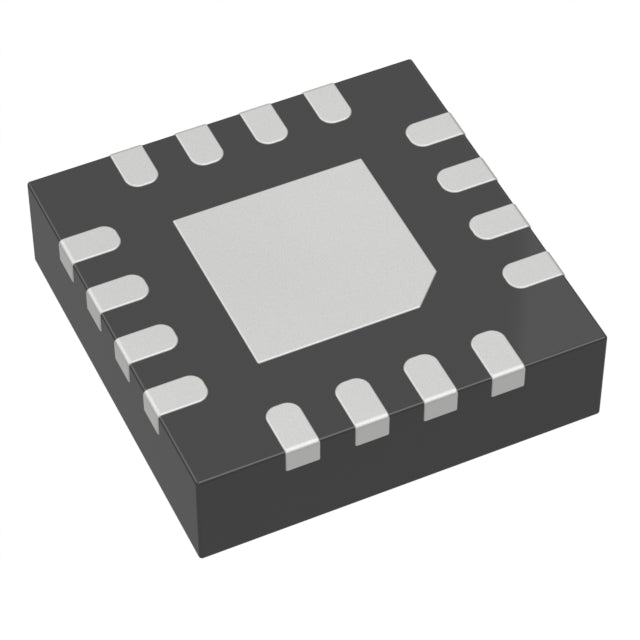

| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-VQFN (3x3) |
| ROHS |  |
The Texas Instruments BQ24076RGTR is a linear battery charger tailored for single-cell Lithium Ion batteries. It supports a charge current up to 1.5A and regulates the battery voltage at 4.4V. With a USB interface and robust protection features—over-temperature, over-voltage, reverse current, and short-circuit—it operates reliably from -40°C to 125°C. The 16-VFQFN package makes it suitable for compact consumer electronics.
- Enhanced energy utilization: The 4.4V regulation voltage allows full use of high-voltage Li-Ion cells.
- Comprehensive safety: Built-in over-temperature, over-voltage, reverse current, and short-circuit protections ensure robust operation.
- Industrial temperature range: Operates from -40°C to 125°C, suitable for harsh environments.
- Space-efficient design: The 16-VFQFN package minimizes PCB area for portable devices.
High-Capacity Power Banks
Charge high-density Li-Ion cells with a 4.4V regulation point, maximizing stored energy for portable power solutions.
Digital Cameras
Provide reliable charging for camera batteries via USB, with reverse current protection to prevent drain when the camera is off.
Portable Printers
Power mobile printers in field operations, benefiting from the wide -40°C to 125°C operating range for outdoor use.
Wireless Headphones
Integrate into charging cases for true wireless earbuds, using the compact 16-VFQFN package for slim designs.
Handheld GPS Units
Ensure dependable charging in navigation devices, with over-voltage and short-circuit protection for battery safety.
- Q: What battery chemistry is supported?
- A: This charger is for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports 1 cell.
- Q: What is the maximum charge current?
- A: The maximum charge current is 1.5A.
- Q: What is the battery voltage?
- A: The battery regulation voltage is 4.4V.
- Q: What protections does it offer?
- A: It includes Over Temperature, Over Voltage, Reverse Current, and Short Circuit protection.
- Q: What interface is used?
- A: It uses a USB interface.
BQ24076RGTR.pdf
