Texas Instruments BQ24076RGTT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.70 | $2.70 |
| 15+ | $2.61 | $39.15 |
| 25+ | $2.56 | $64.00 |
| 50+ | $2.41 | $120.50 |
| 100+ | $2.13 | $213.00 |
| N+ | $0.43 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant |
| Programmable Features | Current, Timer |
| Fault Protection | Over Temperature, Over Voltage, Reverse Current, Short Circuit |
| Charge Current - Max | 1.5A |
| Battery Pack Voltage | 4.4V |
| Voltage - Supply (Max) | 6.4V |
| Interface | USB |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

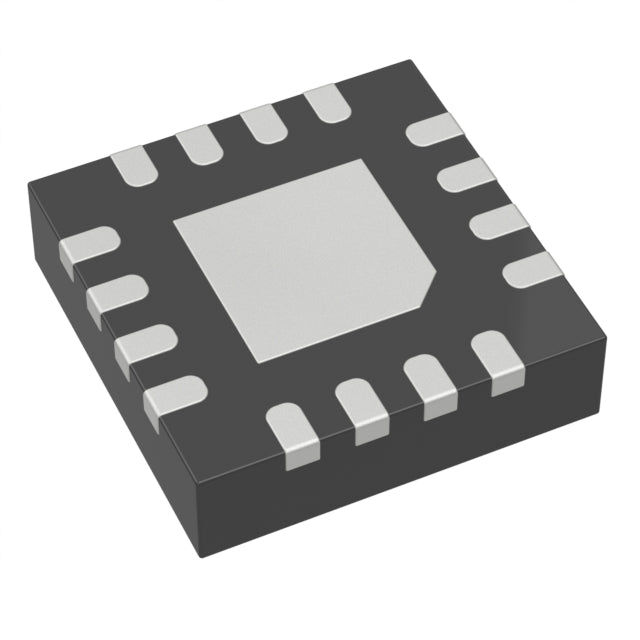

| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-VQFN (3x3) |
| ROHS |  |
The Texas Instruments BQ24076RGTT is a highly integrated single-cell Lithium Ion battery charger. It delivers a programmable charge current up to 1.5A and supports a battery voltage of 4.4V. This charger includes essential safety features such as Over Temperature, Over Voltage, Reverse Current, and Short Circuit protection. Its USB interface makes it ideal for portable and consumer electronics requiring reliable and efficient battery management.
- Fast Charging: Supports up to 1.5A charge current to minimize charging time for single-cell Li-Ion batteries.
- Comprehensive Safety: Integrated Over Temperature, Over Voltage, Reverse Current, and Short Circuit protection ensures safe operation in various conditions.
- Wide Temperature Range: Operational from -40°C to 125°C (TJ), suitable for industrial-grade applications.
- Space-Saving Design: The compact 16-VFQFN package is ideal for space-constrained portable designs.
Portable Electronics
Ideal for compact devices like smartphones and tablets, the BQ24076RGTT's 1.5A charge current and USB interface enable fast, convenient charging from standard USB ports.
Medical Devices
In portable medical monitoring equipment, the integrated Over Temperature and Over Voltage protection ensures safe and reliable charging of the single-cell Lithium Ion battery, critical for patient safety.
Industrial Handhelds
For rugged handheld scanners and PDAs used in warehouses, the wide operating temperature range of -40°C to 125°C (TJ) ensures consistent charging performance in demanding environments.
Smart Home Devices
Wireless sensors and smart locks benefit from the compact 16-VFQFN package and robust protection features, providing a dependable power management solution for always-on IoT devices.
Portable Power Banks
The high 1.5A charge current reduces recharge time for power banks, while the Reverse Current protection prevents battery drain when the input supply is disconnected.
- Q: What battery chemistry does the BQ24076RGTT support?
- A: It is designed for single-cell Lithium Ion batteries.
- Q: How many cells can this charger manage?
- A: It supports 1 cell.
- Q: What is the maximum charge current?
- A: The maximum charge current is 1.5A.
- Q: What is the battery pack voltage?
- A: The battery voltage is 4.4V.
- Q: What fault protections are included?
- A: It includes Over Temperature, Over Voltage, Reverse Current, and Short Circuit protection.
- Q: What interface does it use?
- A: It uses a USB interface.
BQ24076RGTT.pdf
