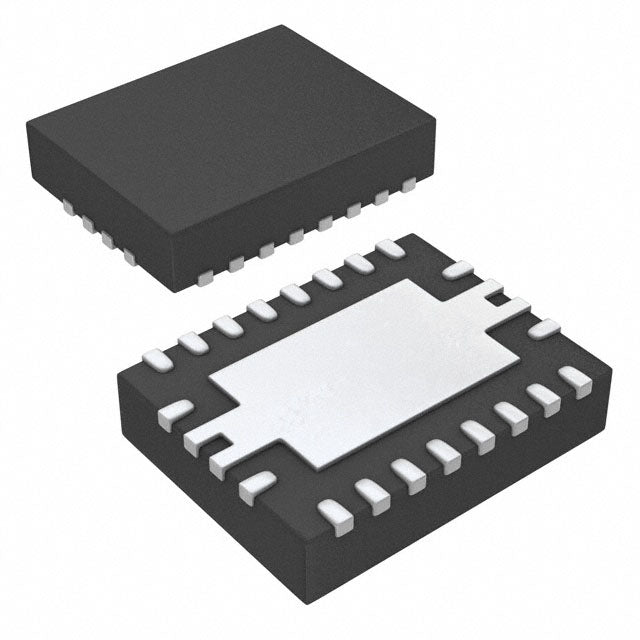

Texas Instruments BQ24108RHLR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.93 | $4.93 |
| 15+ | $4.77 | $71.55 |
| 25+ | $4.67 | $116.75 |
| 50+ | $4.41 | $220.50 |
| 100+ | $3.89 | $389.00 |
| N+ | $0.78 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | bqSWITCHER™ |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Timer |
| Fault Protection | Over Temperature, Over Voltage |
| Charge Current - Max | 2A |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 16V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-VQFN (3.5x4.5) |
| ROHS |  |
The Texas Instruments BQ24108RHLR is a high-efficiency switch-mode battery charger for single-cell Lithium Ion and Lithium Polymer batteries. It supports a charge current up to 2A and a battery regulation voltage of 4.2V. The device includes over-temperature and over-voltage protection and is housed in a compact 20-VFQFN package, suitable for space-limited portable electronics.
- High Charge Current: Supports up to 2A, enabling faster charging cycles for single-cell batteries.
- Dual Chemistry Support: Compatible with both Lithium Ion and Lithium Polymer cells, offering design flexibility.
- Comprehensive Protection: Over-voltage and over-temperature protection enhance system safety and battery lifespan.
- Space-Saving Package: The 20-VFQFN package is ideal for compact, portable device designs.
Smartphones and Tablets
The BQ24108RHLR's 2A charge current and 4.2V target make it ideal for fast charging of single-cell Li-Ion batteries in modern handheld devices.
Portable Power Banks
This switch-mode charger efficiently charges the internal single-cell battery of power banks, enabling higher current with less heat generation.
Bluetooth Speakers
For portable audio equipment, this IC provides a reliable charging solution for the embedded 4.2V Li-Polymer battery.
Digital Cameras
The compact VFQFN package and high charge current are well-suited for space-constrained camera designs that require quick battery top-ups.
Wearable Devices
Its small footprint and support for Li-Polymer chemistry make it a candidate for charging batteries in smartwatches and fitness trackers.
- Q: What battery chemistries are supported?
- A: It supports Lithium Ion and Lithium Polymer batteries.
- Q: How many cells can it charge?
- A: It is designed for a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 2A.
- Q: What is the target battery voltage?
- A: The target battery voltage is 4.2V.
- Q: What protections are included?
- A: It includes Over Temperature and Over Voltage protection.
- Q: What is the package type?
- A: It comes in a 20-VFQFN Exposed Pad package.
