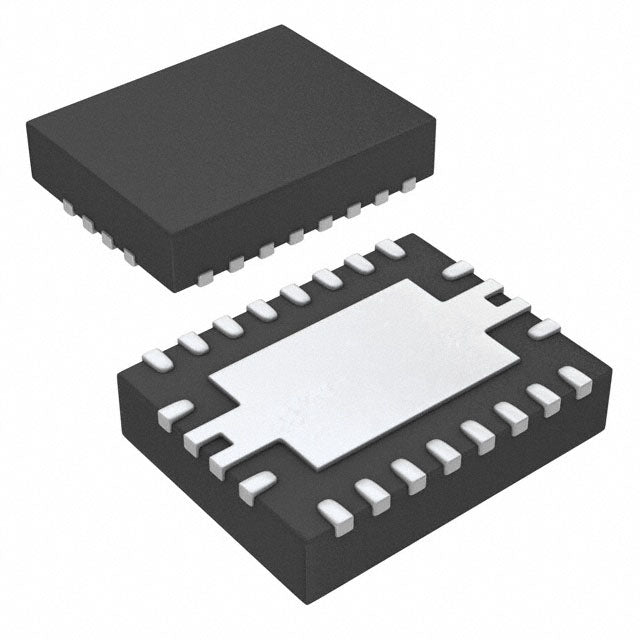

Texas Instruments BQ24113ARHLTG4
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $14.33 | $14.33 |
| 15+ | $3.29 | $49.35 |
| 25+ | $3.22 | $80.50 |
| 50+ | $3.04 | $152.00 |
| 100+ | $2.69 | $269.00 |
| N+ | $0.54 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | bqSWITCHER™ |
| Packaging | Tape & Reel (TR) | |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 ~ 2 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Timer |
| Fault Protection | Over Temperature, Over Voltage |
| Charge Current - Max | 2A |
| Battery Pack Voltage | 8.4V |
| Voltage - Supply (Max) | 16V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-VQFN (3.5x4.5) |
| ROHS |  |
Texas Instruments BQ24113ARHLTG4 Battery Charger IC
The BQ24113ARHLTG4 from Texas Instruments is a high-performance lithium-ion/polymer battery charger IC designed for 1-2 cell applications. Part of the bqSWITCHER™ series, this advanced charging solution delivers up to 2A of programmable constant current with comprehensive protection features including over-temperature and over-voltage safeguards.
Engineered for embedded and industrial applications, the BQ24113ARHLTG4 operates across a wide temperature range (-40°C to 85°C) and supports battery pack voltages up to 8.4V with a maximum supply voltage of 16V. The compact 20-VQFN (3.5x4.5mm) surface mount package with exposed pad ensures efficient thermal management and space-saving PCB layouts.
Key Features & Benefits
- Programmable charging current and timer for flexible battery management
- Dual-layer protection: over-temperature and over-voltage fault detection
- Wide operating temperature range suitable for harsh environments
- Compact surface mount design optimized for high-density applications
- RoHS compliant for environmental responsibility
Applications
Ideal for portable electronics, industrial equipment, medical devices, and embedded systems requiring reliable lithium-ion or lithium-polymer battery charging with advanced safety features and precise control.
