Texas Instruments BQ24150AYFFT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.24 | $6.24 |
| 15+ | $6.04 | $90.60 |
| 25+ | $5.91 | $147.75 |
| 50+ | $5.58 | $279.00 |
| 100+ | $4.93 | $493.00 |
| N+ | $0.99 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Cut Tape (CT) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Timer, Voltage |
| Fault Protection | Over Temperature, Over Voltage |
| Charge Current - Max | 1.25A |
| Battery Pack Voltage | 4.44V (Max) |
| Voltage - Supply (Max) | 6V |
| Interface | I2C |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

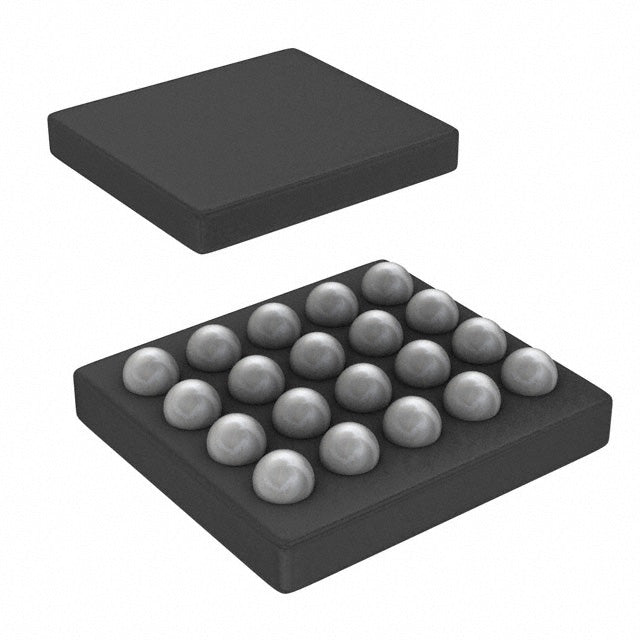

| Package / Case | 20-UFBGA, DSBGA |
| Supplier Device Package | 20-DSBGA |
| ROHS |  |
The BQ24150AYFFT is a fully integrated switch-mode battery charger for single-cell Lithium Ion/Polymer batteries. It supports a charge current of up to 1.25A and a maximum battery voltage of 4.44V. With an I2C interface for precise control, this charger offers programmable charging parameters. It includes over-temperature and over-voltage protection for enhanced safety. The compact 20-UFBGA package is ideal for portable applications.
- Fast Charging: Delivers up to 1.25A charge current to reduce charging time.
- High Accuracy: Regulates battery voltage up to 4.44V for maximum capacity utilization.
- Digital Programmability: I2C interface enables dynamic control of charge settings.
- Comprehensive Protection: Over Temperature and Over Voltage safeguards ensure safe operation.
- Ultra-Compact: 20-UFBGA package is perfect for space-limited designs.
Smartphones & Tablets
Provides efficient charging for single-cell Li-Polymer batteries in mobile devices, with I2C control for adaptive fast charging up to 1.25A.
Portable Media Players
Ideal for MP3 players and handheld entertainment systems, offering a compact 20-UFBGA solution with robust over-temperature protection.
Digital Cameras & Camcorders
Charges Li-Ion batteries in photography equipment, ensuring reliable power management with over-voltage protection for sensitive electronics.
Wireless Peripherals
Used in Bluetooth speakers and keyboards, providing a space-efficient charging solution with a wide -40°C to 85°C operating range.
Handheld Barcode Scanners
Suitable for retail and warehouse scanners, delivering consistent charging performance in demanding indoor environments.
- Q: What battery chemistry does the BQ24150AYFFT support?
- A: It is designed for Lithium Ion/Polymer batteries.
- Q: How many cells does it support?
- A: It supports a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 1.25A.
- Q: What is the maximum battery pack voltage?
- A: The maximum battery pack voltage is 4.44V.
- Q: What fault protection is included?
- A: It includes Over Temperature and Over Voltage protection.
- Q: What interface does it use?
- A: It uses an I2C interface for control.
BQ24150AYFFT.pdf
- Q: What battery chemistry does the BQ24150AYFFT support?
- A: It is designed for Lithium Ion/Polymer batteries.
- Q: How many cells does it support?
- A: It supports a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 1.25A.
- Q: What is the maximum battery pack voltage?
- A: The maximum battery pack voltage is 4.44V.
- Q: What fault protection is included?
- A: It includes Over Temperature and Over Voltage protection.
- Q: What interface does it use?
- A: It uses an I2C interface for control.
