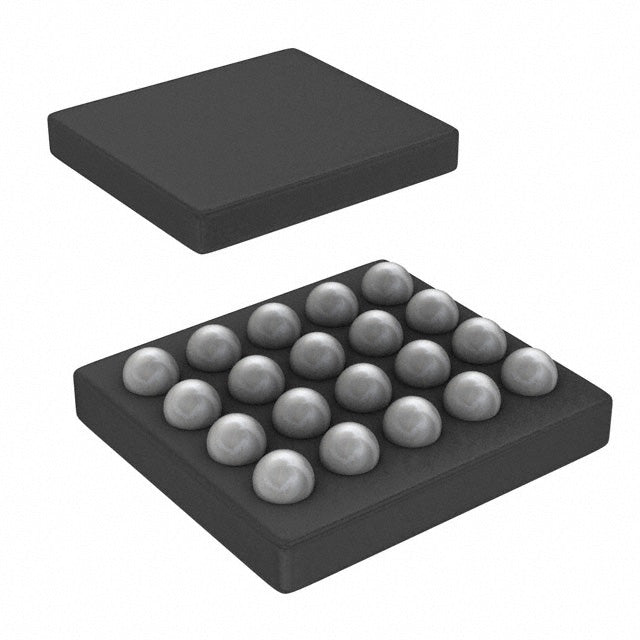

Texas Instruments BQ24153AYFFT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.58 | $6.58 |
| 15+ | $6.38 | $95.70 |
| 25+ | $6.24 | $156.00 |
| 50+ | $5.89 | $294.50 |
| 100+ | $5.20 | $520.00 |
| N+ | $1.04 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Timer |
| Fault Protection | Over Temperature, Over Voltage |
| Charge Current - Max | 1.25A |
| Battery Pack Voltage | 4.44V (Max) |
| Voltage - Supply (Max) | 6V |
| Interface | I2C |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-UFBGA, DSBGA |
| Supplier Device Package | 20-DSBGA |
| ROHS |  |
The BQ24153AYFFT is a highly integrated single-cell Lithium Ion/Polymer battery charger from Texas Instruments. It supports a charge current up to 1.25A and a battery voltage up to 4.44V. Featuring an I2C interface, it allows for advanced system control and monitoring. The device includes over-temperature and over-voltage protection. Its compact 20-UFBGA package is ideal for space-constrained portable electronics.
- Programmable Charging via I2C: Allows the host controller to dynamically adjust charging parameters for optimal performance.
- High Accuracy Voltage Regulation: Supports up to 4.44V for high-capacity Li-Polymer batteries.
- Compact Wafer-Level Package: The 20-UFBGA package saves significant board space.
- Integrated Safety Protections: Includes over-temperature and over-voltage protection for reliable operation.
Smartphones and Tablets
With a 1.25A charge current and I2C control, it is ideal for managing the charging profile of modern smartphones and tablets.
Portable Bluetooth Speakers
Provides a reliable and controllable charging solution for the high-capacity batteries in portable speakers.
E-Readers and Tablets
Supports the charging needs of e-readers and other portable media devices that require precise voltage control.
Wearable Devices with Fast Charging
Its I2C interface allows for optimized charging algorithms, making it suitable for advanced wearables.
Portable Gaming Devices
Ensures efficient and safe charging for handheld gaming consoles, extending their usability.
- Q: What battery chemistry does the BQ24153AYFFT support?
- A: It is designed for Lithium Ion/Polymer batteries.
- Q: How many cells can it charge?
- A: It supports a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 1.25A.
- Q: What is the maximum battery pack voltage?
- A: The maximum battery pack voltage is 4.44V.
- Q: What interface does it use?
- A: It uses an I2C interface for control.
- Q: What fault protections are included?
- A: It includes Over Temperature and Over Voltage protection.
