Texas Instruments BQ24156AYFFT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.32 | $7.32 |
| 15+ | $7.09 | $106.35 |
| 25+ | $6.94 | $173.50 |
| 50+ | $6.55 | $327.50 |
| 100+ | $5.78 | $578.00 |
| N+ | $1.16 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Cut Tape (CT) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Timer |
| Fault Protection | Over Temperature, Over Voltage |
| Charge Current - Max | 1.55A |
| Battery Pack Voltage | 4.44V (Max) |
| Voltage - Supply (Max) | 9V |
| Interface | I2C |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

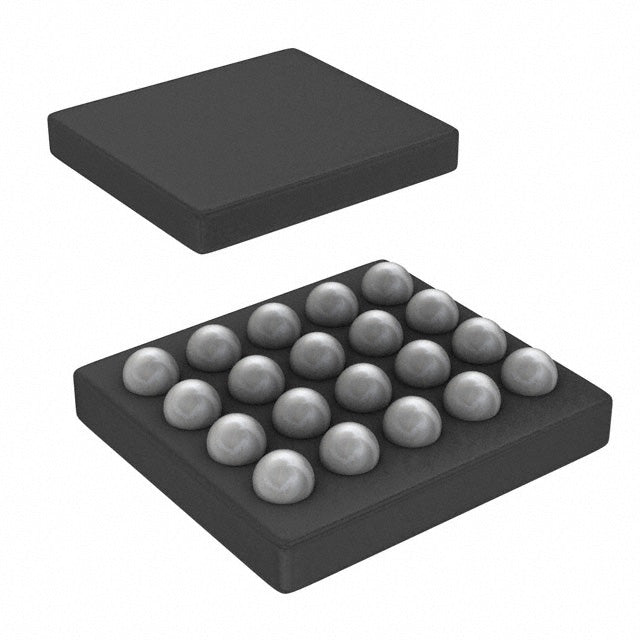

| Package / Case | 20-UFBGA, DSBGA |
| Supplier Device Package | 20-DSBGA |
| ROHS |  |
BQ24156AYFFT - Advanced Lithium-Ion Battery Charging Management IC
The BQ24156AYFFT from Texas Instruments is a highly integrated single-cell lithium-ion and lithium-polymer battery charger IC designed for portable applications. This advanced charging solution features programmable charge current up to 1.55A, I2C interface for flexible configuration, and comprehensive safety protections including over-temperature and over-voltage fault detection.
Key Features & Benefits:
- Single-cell Li-Ion/Li-Polymer battery charging with up to 1.55A charge current
- I2C interface enables dynamic power management and real-time monitoring
- Programmable current and timer settings for optimized charging profiles
- Comprehensive fault protection (over-temperature, over-voltage) ensures safe operation
- Compact 20-DSBGA package ideal for space-constrained designs
- Wide operating temperature range: -30°C to 85°C
- Surface mount technology for automated assembly
Typical Applications: Smartphones, tablets, portable medical devices, handheld instruments, wireless headsets, power banks, and other battery-powered consumer electronics requiring reliable single-cell lithium battery charging.
Authentic Components: All ICs are sourced from authorized distributors, ensuring genuine Texas Instruments quality with full traceability and compliance.
