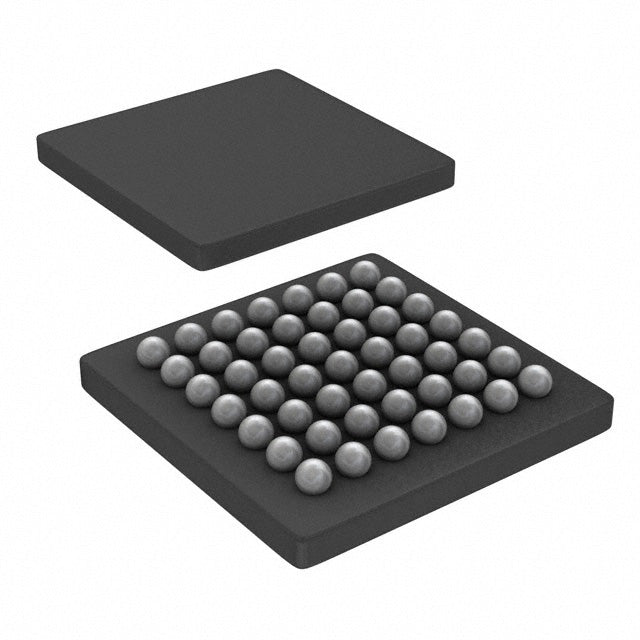

Texas Instruments BQ24163YFFT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.43 | $5.43 |
| 15+ | $5.26 | $78.90 |
| 25+ | $5.15 | $128.75 |
| 50+ | $4.86 | $243.00 |
| 100+ | $4.29 | $429.00 |
| N+ | $0.86 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Cut Tape (CT) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | Over Temperature, Over Voltage |
| Charge Current - Max | 2.5A |
| Battery Pack Voltage | 3.4V |
| Voltage - Supply (Max) | 10V |
| Interface | I2C |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 49-UFBGA, DSBGA |
| Supplier Device Package | 49-DSBGA (2.8x2.8) |
| ROHS |  |
The BQ24163YFFT is a single-cell switch-mode charger for Lithium Ion/Polymer batteries. It supports a charge current of up to 2.5A and a battery voltage of 3.4V. The I2C interface allows for precise control and monitoring of the charging process. With Over Temperature and Over Voltage protection, it ensures safe operation across a wide temperature range. This IC is ideal for portable electronics, wearables, and IoT devices requiring a compact and efficient charging solution.
- Compact Solution: The 49-UFBGA package minimizes PCB area, ideal for slim devices.
- Fast Charging: 2.5A current capability reduces charge time for single-cell batteries.
- Digital Control: I2C interface enables programmable charging parameters for optimized performance.
- Comprehensive Protection: Over Temperature and Over Voltage safeguards ensure long-term reliability.
Smartphones and Mobile Devices
With 2.5A charging and I2C control, this IC is optimized for fast and safe charging of single-cell Li-Ion batteries in modern handsets.
Portable Speakers
Its compact package and reliable protection make it suitable for Bluetooth speakers that require efficient battery management.
E-Readers and Tablets
Provides consistent charging performance for devices with moderate battery capacities, ensuring long operational life.
GPS and Tracking Devices
The wide temperature range supports reliable operation in automotive and outdoor tracking applications.
Smart Glasses and AR Devices
Small footprint and high efficiency enable integration into next-generation wearable computing devices.
- Q: What battery chemistry does the BQ24163YFFT support?
- A: It is designed for Lithium Ion/Polymer batteries.
- Q: How many cells can it charge?
- A: It supports a single-cell (1) configuration.
- Q: What is the maximum charge current?
- A: The maximum charge current is 2.5A.
- Q: What is the battery pack voltage?
- A: The battery pack voltage is 3.4V.
- Q: What protection features are included?
- A: It includes Over Temperature and Over Voltage protection.
- Q: What interface and package does it use?
- A: It uses an I2C interface and comes in a 49-UFBGA, DSBGA package.
BQ24163YFFT.pdf
