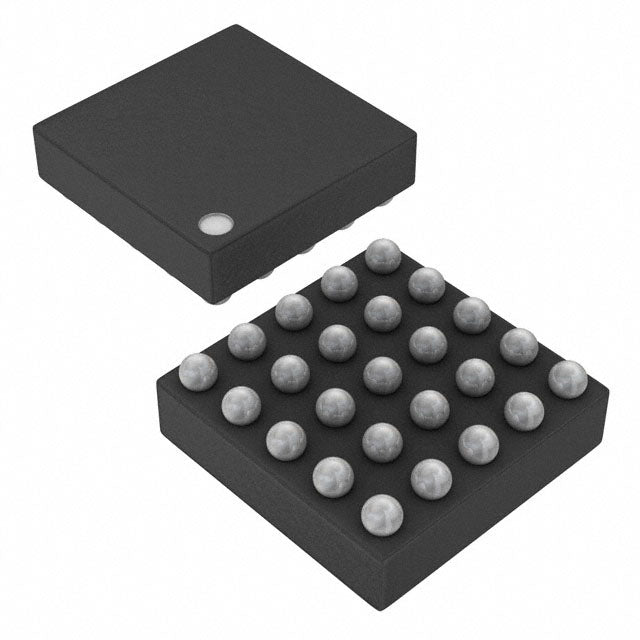

Texas Instruments BQ24180YFFT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.93 | $5.93 |
| 15+ | $5.74 | $86.10 |
| 25+ | $5.62 | $140.50 |
| 50+ | $5.30 | $265.00 |
| 100+ | $4.68 | $468.00 |
| N+ | $0.94 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Cut Tape (CT) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | - |
| Programmable Features | - |
| Fault Protection | Over Temperature, Over Voltage |
| Charge Current - Max | 1.5A |
| Battery Pack Voltage | 4.44V (Max) |
| Voltage - Supply (Max) | 16V |
| Interface | I2C |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 25-UFBGA, DSBGA |
| Supplier Device Package | 25-DSBGA |
| ROHS |  |
The BQ24180YFFT is a highly integrated switch-mode battery charge management solution for single-cell Lithium Ion/Polymer batteries. It delivers up to 1.5A of charge current with a maximum battery voltage of 4.44V. Featuring an I2C interface for precise control and monitoring, this charger includes essential protection against over-temperature and over-voltage conditions. Its compact 25-UFBGA package makes it ideal for space-constrained portable applications.
- Efficient Power Delivery: Supports up to 1.5A charge current for faster charging cycles in portable devices.
- Precise Voltage Regulation: Charges to a maximum of 4.44V, optimizing battery capacity and lifespan.
- Digital Control: I2C interface allows for dynamic adjustment of charging parameters for system flexibility.
- Integrated Safety: Built-in Over Temperature and Over Voltage protection ensures reliable operation.
- Compact Footprint: 25-UFBGA package is ideal for miniaturized consumer electronics.
Portable Electronics
Ideal for single-cell Li-Ion/Polymer powered devices like smartphones and tablets, providing a regulated 1.5A charge current via an I2C interface for dynamic system optimization.
Medical Devices
Used in portable medical monitors where precise charging up to 4.44V is critical for battery longevity and safety, with over-voltage protection to safeguard sensitive equipment.
Wireless Headsets & Wearables
Compact 25-UFBGA package fits space-constrained designs for true wireless earbuds and smartwatches, ensuring reliable charging in a small form factor.
Industrial Handhelds
Suitable for rugged PDAs and scanners operating in environments from -30°C to 85°C, ensuring consistent performance in varied thermal conditions.
Smart Home Devices
Powers smart locks, sensors, and cameras that rely on single-cell Li-Polymer batteries, with I2C programmability for adaptive charging profiles.
- Q: What battery chemistry does the BQ24180YFFT support?
- A: It is designed for Lithium Ion/Polymer batteries.
- Q: How many battery cells can this charger handle?
- A: It supports a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 1.5A.
- Q: What is the maximum battery pack voltage?
- A: The maximum battery pack voltage is 4.44V.
- Q: What fault protection features are included?
- A: It includes Over Temperature and Over Voltage protection.
- Q: What control interface does it use?
- A: It uses an I2C interface for control.
BQ24180YFFT.pdf
- Q: What battery chemistry does the BQ24180YFFT support?
- A: It is designed for Lithium Ion/Polymer batteries.
- Q: How many battery cells can this charger handle?
- A: It supports a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 1.5A.
- Q: What is the maximum battery pack voltage?
- A: The maximum battery pack voltage is 4.44V.
- Q: What fault protection features are included?
- A: It includes Over Temperature and Over Voltage protection.
- Q: What control interface does it use?
- A: It uses an I2C interface for control.
