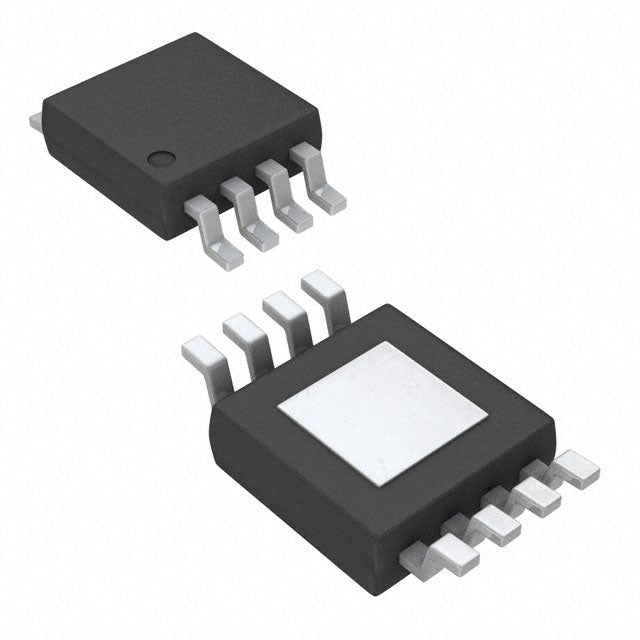

Texas Instruments BQ24200DGNR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $15.19 | $15.19 |
| 15+ | $3.50 | $52.50 |
| 25+ | $3.42 | $85.50 |
| 50+ | $3.23 | $161.50 |
| 100+ | $2.85 | $285.00 |
| N+ | $0.57 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant |
| Programmable Features | Current, Timer |
| Fault Protection | Over Temperature, Short Circuit |
| Charge Current - Max | 500mA |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 13.5V |
| Interface | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 8-HVSSOP |
| ROHS |  |
The Texas Instruments BQ24200DGNR is a highly integrated single-cell Lithium Ion/Polymer battery charger. It delivers a programmable charge current up to 500mA and a regulated battery voltage of 4.2V. This charger includes essential safety features such as over-temperature and short-circuit protection. Housed in a compact 8-TSSOP package, it is well-suited for space-constrained portable applications requiring reliable and simple battery management.
- Enhanced Safety: Integrated over-temperature and short-circuit protection ensures safe charging in diverse conditions.
- Wide Thermal Tolerance: Operates across a broad junction temperature range from -40°C to 125°C, suitable for demanding environments.
- Compact Design: The 8-TSSOP package with exposed pad minimizes board space for space-limited portable devices.
- Simple Integration: Designed for single-cell Li-Ion/Polymer packs, simplifying the power management circuit.
Single-Cell Portable Electronics
Ideal for compact devices like Bluetooth headsets, wearable fitness trackers, and small IoT sensors that require a safe, low-current charge for a single Lithium Ion/Polymer cell.
Medical Monitoring Devices
With a wide junction temperature range of -40°C to 125°C, this charger can be used in medical patches and diagnostic tools that may be exposed to varying environmental conditions during sterilization or patient use.
Smart Home Sensors
Perfect for battery-powered thermostats, door/window sensors, and security cameras that need a reliable 500mA charge current and robust short-circuit protection for long-term, unattended operation.
Low-Power Industrial Handhelds
Suitable for barcode scanners and handheld multimeters where the 8-TSSOP package allows for a compact PCB layout and the over-temperature protection ensures safe charging in warm factory environments.
Rechargeable Toys and Gadgets
Provides a cost-effective charging solution for single-cell Li-Polymer batteries in consumer toys, electronic pens, and small flashlights, ensuring safe operation with built-in thermal and short-circuit safeguards.
- Q: What battery chemistry does the BQ24200DGNR support?
- A: It is designed for Lithium Ion/Polymer batteries.
- Q: How many battery cells can it charge?
- A: It supports a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 500mA.
- Q: What is the battery pack voltage?
- A: The battery voltage is 4.2V.
- Q: What fault protection features are included?
- A: It includes Over Temperature and Short Circuit protection.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C (TJ).
