Texas Instruments BQ24232HRGTT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.29 | $2.29 |
| 15+ | $2.22 | $33.30 |
| 25+ | $2.17 | $54.25 |
| 50+ | $2.05 | $102.50 |
| 100+ | $1.81 | $181.00 |
| N+ | $0.36 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Timer |
| Fault Protection | Over Temperature, Over Voltage, Reverse Current, Short Circuit |
| Charge Current - Max | 500mA |
| Battery Pack Voltage | 4.35V |
| Voltage - Supply (Max) | 10.2V |
| Interface | USB |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

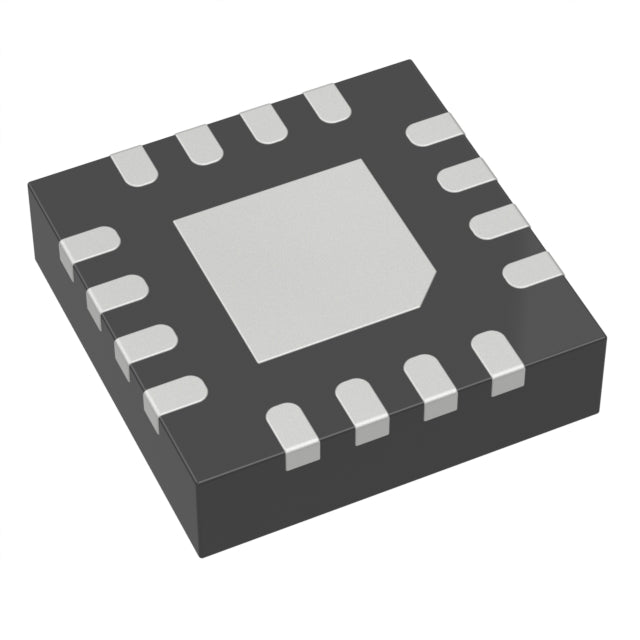

| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-VQFN (3x3) |
| ROHS |  |
The BQ24232HRGTT from Texas Instruments is a USB-compatible battery charger for single-cell Lithium Ion batteries. It delivers a charge current up to 500mA to a 4.35V battery, making it ideal for small portable devices and wearables. The device offers comprehensive protection including over-temperature, over-voltage, reverse current, and short circuit safeguards. With a junction temperature range of -40°C to 125°C, it performs reliably in demanding conditions. Its compact 16-VFQFN package is perfect for space-constrained applications.
- Comprehensive Protection: Includes over-temperature, over-voltage, reverse current, and short circuit protection for maximum safety.
- High-Temperature Tolerance: Junction temperature rating up to 125°C enables use in hot environments.
- Optimized for Small Cells: 500mA charge current is ideal for low-capacity batteries in wearables and IoT devices.
- Space-Efficient: 16-VFQFN package minimizes PCB footprint for miniaturized product designs.
Wearable Fitness Devices
Charge small single-cell Li-Ion batteries in fitness bands and smartwatches with a safe 500mA current, ideal for low-capacity cells.
Wireless Earbuds
Power compact charging cases for earbuds, using the 4.35V battery voltage to maximize energy density in limited space.
Medical Sensors
Support continuous glucose monitors and other wearable medical patches that require reliable, protected charging in a compact form factor.
IoT Sensor Nodes
Charge batteries in wireless environmental sensors, benefiting from the wide junction temperature range up to 125°C for robust performance.
Portable Accessories
Integrate into stylus pens, remote controls, and small gadgets that charge via USB, ensuring safe operation with comprehensive fault protection.
- Q: What battery chemistry does the BQ24232H support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 500mA.
- Q: What is the battery voltage?
- A: The battery voltage is 4.35V.
- Q: What fault protection features are included?
- A: It includes Over Temperature, Over Voltage, Reverse Current, and Short Circuit protection.
- Q: What interface does it use?
- A: It uses a USB interface.
