Texas Instruments BQ24620RVAT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.10 | $5.10 |
| 15+ | $4.94 | $74.10 |
| 25+ | $4.83 | $120.75 |
| 50+ | $4.56 | $228.00 |
| 100+ | $4.03 | $403.00 |
| N+ | $0.81 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Iron Phosphate |
| Number of Cells | 1 ~ 7 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | Over Current, Over Temperature, Over Voltage, Short Circuit |
| Charge Current - Max | 10A |
| Battery Pack Voltage | 26V (Max) |
| Voltage - Supply (Max) | 28V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

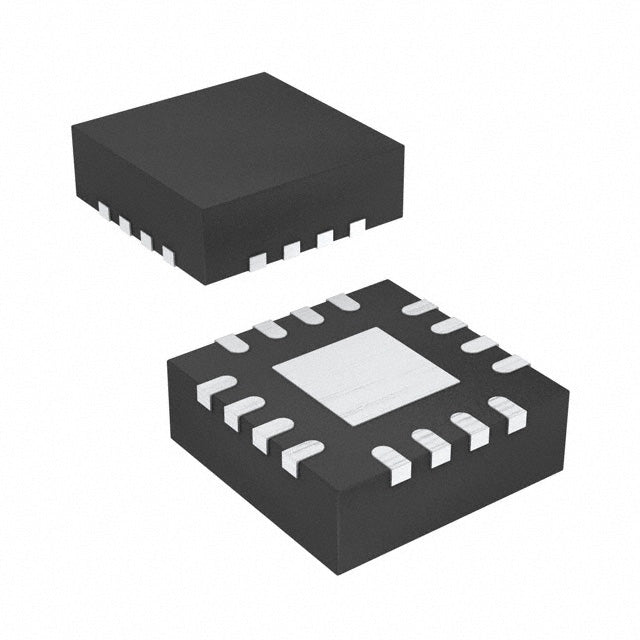

| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-VQFN (3.5x3.5) |
| ROHS |  |
The Texas Instruments BQ24620RVAT is a highly integrated, switch-mode battery charge controller designed for Lithium Iron Phosphate battery packs. It supports a wide range of applications with its capability to charge 1 to 7 cells at a maximum current of 10A and a battery voltage up to 26V. This charger is engineered for efficiency and safety, incorporating essential fault protections such as overcurrent, overvoltage, and short-circuit protection. Its robust design, qualified for an industrial temperature range, makes it suitable for demanding applications including energy storage systems and industrial equipment.
- High-Speed Charging: Supports up to 10A charge current, significantly reducing charging time for large-capacity battery packs.
- Versatile Cell Configuration: Handles 1 to 7 series cells, offering flexibility for various battery pack designs.
- Industrial-Grade Reliability: With a -40°C to 85°C operating range, it is built to perform in harsh environments.
- Comprehensive Safety: Integrated overcurrent, overvoltage, and short-circuit protection ensures safe operation under fault conditions.
High-Capacity Energy Storage Systems
The BQ24620RVAT's 10A charge current and support for up to 7 LiFePO4 cells make it ideal for building robust energy storage systems that require fast and efficient charging of high-voltage battery banks.
Industrial Backup Power Supplies
With an operating temperature range of -40°C to 85°C, this charger is suitable for industrial environments where reliable charging of backup battery systems is critical, even under harsh thermal conditions.
Electric Vehicles and E-Bikes
For light electric vehicles, the high charge current and multi-cell support enable rapid charging cycles, reducing downtime and improving the usability of the vehicle.
Solar-Powered Charging Stations
In off-grid solar installations, the BQ24620RVAT can efficiently manage the charging of LiFePO4 battery banks, ensuring maximum energy harvest and safe operation with its comprehensive fault protection.
Portable Medical Equipment
The wide temperature range and reliable protection features make this charger a dependable choice for portable medical devices that require a safe and long-lasting power source.
- Q: What battery chemistry does the BQ24620RVAT support?
- A: It is designed for Lithium Iron Phosphate batteries.
- Q: How many cells can this charger handle?
- A: It supports 1 to 7 cells in series.
- Q: What is the maximum charge current?
- A: The maximum charge current is 10A.
- Q: What is the maximum battery pack voltage?
- A: The battery pack voltage can go up to 26V (Max).
- Q: What fault protections are included?
- A: It includes Over Current, Over Temperature, Over Voltage, and Short Circuit protection.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C (TA).
BQ24620RVAT.pdf
- Q: What battery chemistry does the BQ24620RVAT support?
- A: It is designed for Lithium Iron Phosphate batteries.
- Q: How many cells can this charger handle?
- A: It supports 1 to 7 cells in series.
- Q: What is the maximum charge current?
- A: The maximum charge current is 10A.
- Q: What is the maximum battery pack voltage?
- A: The battery pack voltage can go up to 26V (Max).
- Q: What fault protections are included?
- A: It includes Over Current, Over Temperature, Over Voltage, and Short Circuit protection.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C (TA).
