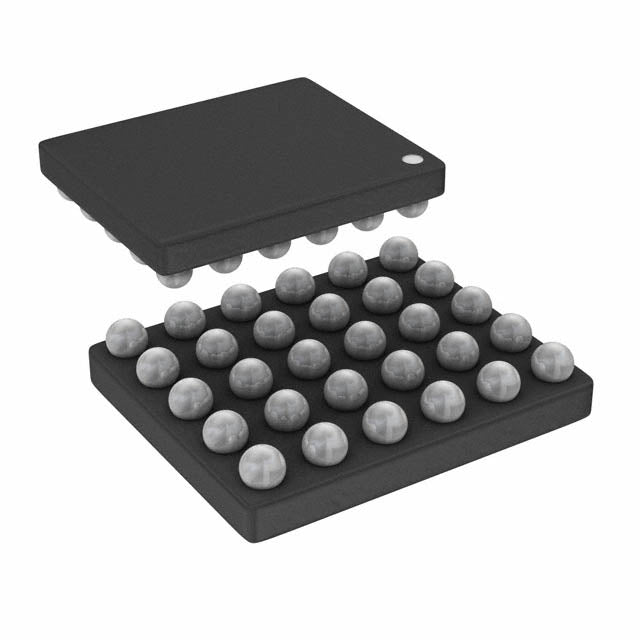

Texas Instruments BQ25600DYFFR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.66 | $2.66 |
| 15+ | $2.58 | $38.70 |
| 25+ | $2.52 | $63.00 |
| 50+ | $2.38 | $119.00 |
| 100+ | $2.10 | $210.00 |
| N+ | $0.42 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant |
| Programmable Features | Current |
| Fault Protection | Over Current, Over Temperature, Over Voltage |
| Charge Current - Max | 3A |
| Battery Pack Voltage | 4.62V (Max) |
| Voltage - Supply (Max) | 13.5V |
| Interface | I2C |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 30-UFBGA, DSBGA |
| Supplier Device Package | 30-DSBGA |
| ROHS |  |
The BQ25600DYFFR from Texas Instruments is a highly integrated single-cell battery charger for Lithium Ion/Polymer batteries. It supports a charge current up to 3A and a maximum battery voltage of 4.62V. The device features an I2C interface for flexible configuration and monitoring. Built-in protections include over-current, over-temperature, and over-voltage safeguards. Its ultra-compact 30-UFBGA DSBGA package is ideal for space-constrained portable applications.
- Fast Charging: Up to 3A charge current significantly reduces charging time.
- Advanced Control: I2C interface allows dynamic adjustment of charging parameters.
- Ultra-Small Footprint: 30-UFBGA DSBGA package saves critical board space.
- Multi-Layer Protection: OCP, OTP, and OVP ensure safe operation under all conditions.
High-Capacity Smartphones
Delivers up to 3A charge current for fast charging of large-capacity single-cell Li-Polymer batteries in modern smartphones.
Tablets & 2-in-1 Laptops
Provides efficient power management for tablets and convertible laptops, with I2C control for charge profile optimization.
Portable Gaming Devices
Supports high-drain gaming handhelds with rapid 3A charging and robust over-temperature protection for sustained performance.
Drones & RC Hobbyists
Ideal for compact drone batteries requiring high charge rates and precise voltage control up to 4.62V.
Advanced Wearables
Enables fast charging in next-gen wearables with its tiny DSBGA package and I2C interface for smart charging algorithms.
- Q: What battery chemistry does the BQ25600DYFFR support?
- A: It is designed for Lithium Ion/Polymer batteries.
- Q: How many cells can it charge?
- A: It supports a single-cell (1) configuration.
- Q: What is the maximum charge current?
- A: The maximum charge current is 3A.
- Q: What is the maximum battery voltage?
- A: The maximum battery voltage is 4.62V.
- Q: What fault protections are included?
- A: It includes Over Current, Over Temperature, and Over Voltage protection.
- Q: What interface and package does it use?
- A: It uses an I2C interface and comes in a 30-UFBGA DSBGA package.
