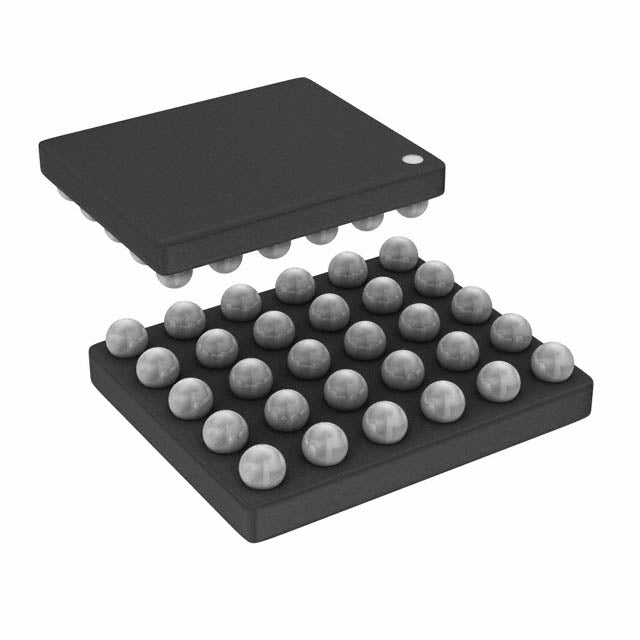

Texas Instruments BQ25600DYFFT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.65 | $3.65 |
| 15+ | $3.53 | $52.95 |
| 25+ | $3.46 | $86.50 |
| 50+ | $3.26 | $163.00 |
| 100+ | $2.88 | $288.00 |
| N+ | $0.58 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant |
| Programmable Features | Current |
| Fault Protection | Over Current, Over Temperature, Over Voltage |
| Charge Current - Max | 3A |
| Battery Pack Voltage | 4.62V (Max) |
| Voltage - Supply (Max) | 13.5V |
| Interface | I2C |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 30-UFBGA, DSBGA |
| Supplier Device Package | 30-DSBGA |
| ROHS |  |
The Texas Instruments BQ25600DYFFT is a highly integrated 3A switch-mode battery charge management solution for 1-cell Lithium Ion/Polymer batteries. It supports a maximum battery voltage of 4.62V and features an I2C interface for precise control and monitoring. Built-in fault protection includes Over Current, Over Temperature, and Over Voltage safeguards. Housed in a compact 30-UFBGA package, it operates over an industrial temperature range of -40°C to 85°C, making it suitable for a wide range of portable and embedded applications.
- Fast 3A charging capability reduces charge time for high-capacity 1-cell batteries.
- I2C interface enables dynamic voltage and current adjustment for optimized charging profiles.
- Comprehensive Over Current, Over Temperature, and Over Voltage protection enhances system safety.
- Industrial temperature range (-40°C to 85°C) ensures reliable operation in demanding environments.
- Compact 30-UFBGA package saves PCB space for space-constrained designs.
Smartphones and Tablets
With a 3A charge current and I2C interface, this IC enables fast charging in compact portable devices while allowing the system to dynamically adjust charging parameters for thermal management.
Portable Medical Devices
The -40°C to 85°C operating temperature range supports reliable charging in medical monitoring equipment used in varied clinical environments.
Wireless Earbuds and Wearables
The small 30-UFBGA package is ideal for space-constrained designs, while the 1-cell Lithium Ion/Polymer support matches typical battery configurations in wearables.
Industrial Handheld Terminals
Over Voltage and Over Temperature protection ensure safe charging in rugged handheld scanners used in warehouses and field operations.
Smart Home Devices
I2C programmability allows smart speakers and security cameras to optimize charge profiles for their specific 1-cell battery packs.
- Q: What battery chemistry does the BQ25600DYFFT support?
- A: It supports Lithium Ion/Polymer batteries.
- Q: How many battery cells can this charger handle?
- A: It is designed for 1 cell configurations.
- Q: What is the maximum charge current?
- A: The maximum charge current is 3A.
- Q: What is the maximum battery pack voltage?
- A: The maximum battery pack voltage is 4.62V.
- Q: What fault protections are included?
- A: It includes Over Current, Over Temperature, and Over Voltage protection.
- Q: What control interface does it use?
- A: It uses an I2C interface for control and monitoring.
