Texas Instruments BQ25600YFFR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.66 | $2.66 |
| 15+ | $2.58 | $38.70 |
| 25+ | $2.52 | $63.00 |
| 50+ | $2.38 | $119.00 |
| 100+ | $2.10 | $210.00 |
| N+ | $0.42 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant |
| Programmable Features | Current |
| Fault Protection | Over Current, Over Temperature, Over Voltage |
| Charge Current - Max | 3A |
| Battery Pack Voltage | 4.62V (Max) |
| Voltage - Supply (Max) | 13.5V |
| Interface | I2C |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

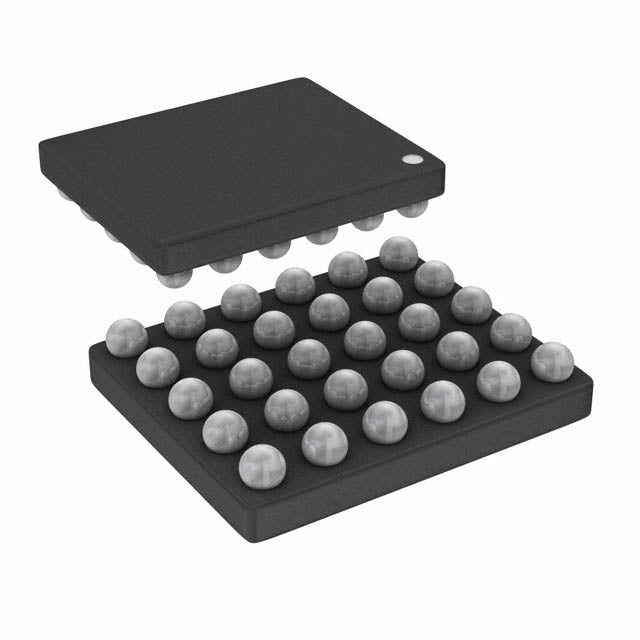

| Package / Case | 30-UFBGA, DSBGA |
| Supplier Device Package | 30-DSBGA |
| ROHS |  |
The BQ25600YFFR from Texas Instruments is a high-performance switch-mode battery charger for single-cell Lithium Ion/Polymer batteries. It supports a charge current up to 3A and a maximum battery voltage of 4.62V. Controlled via an I2C interface, it offers advanced programmability. The device includes overcurrent, overvoltage, and overtemperature protection. Housed in a compact 30-UFBGA package, it operates from -40°C to 85°C, making it ideal for high-current portable and industrial applications.
- Fast Charging: Supports up to 3A charge current, significantly reducing charge time.
- I2C Programmability: Allows fine-tuning of charge parameters for different battery profiles.
- Advanced Protection: Overcurrent, overvoltage, and overtemperature protections ensure safe high-current operation.
- Ultra-Compact Package: The 30-UFBGA package is perfect for space-constrained, high-density designs.
High-Capacity Smartphones
With a 3A charge current, it enables rapid charging for large-capacity single-cell Li-Ion batteries in flagship smartphones.
Tablets and Laptops
The high current capability and I2C programmability make it suitable for charging batteries in compact tablets and ultrabooks.
Portable Power Tools
Its ability to handle up to 3A and wide temperature range supports the demanding requirements of cordless power tools.
Drones and Robotics
The high charge rate and overvoltage protection are critical for safely charging Li-Polymer batteries used in drones and robotic systems.
Energy Storage Accessories
Ideal for portable power stations and large battery packs that require fast, controlled charging via I2C.
- Q: What battery chemistry does the BQ25600YFFR support?
- A: It is designed for Lithium Ion/Polymer batteries.
- Q: How many cells can it charge?
- A: It supports a single cell.
- Q: What is the maximum charge current?
- A: The maximum charge current is 3A.
- Q: What is the maximum battery voltage?
- A: The battery pack voltage can go up to 4.62V (Max).
- Q: What fault protections are included?
- A: It includes Over Current, Over Temperature, and Over Voltage protection.
- Q: What interface does it use?
- A: It uses an I2C interface for control.
