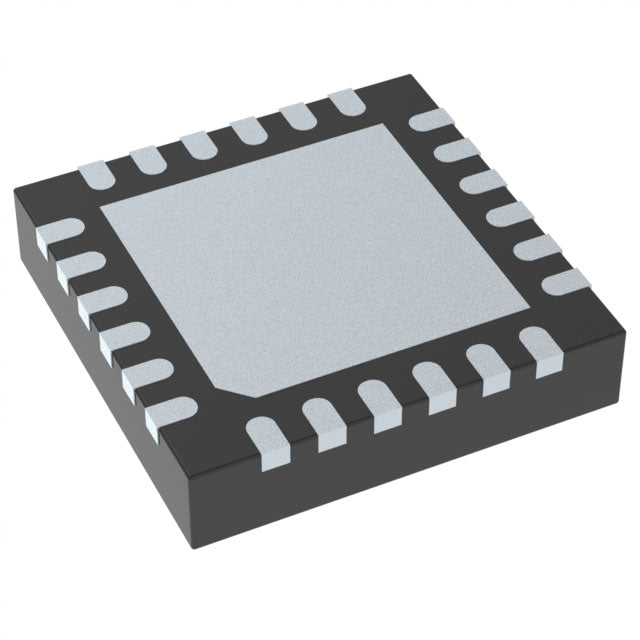

Texas Instruments BQ25896RTWT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.63 | $4.63 |
| 15+ | $4.48 | $67.20 |
| 25+ | $4.38 | $109.50 |
| 50+ | $4.14 | $207.00 |
| 100+ | $3.65 | $365.00 |
| N+ | $0.73 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | MaxCharge™ |
| Packaging | Marketplace | Cut Tape (CT) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | - |
| Programmable Features | - |
| Fault Protection | Over Current, Over Temperature |
| Charge Current - Max | 3A |
| Battery Pack Voltage | - |
| Voltage - Supply (Max) | 14V |
| Interface | I2C |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 24-WFQFN Exposed Pad |
| Supplier Device Package | 24-WQFN (4x4) |
| ROHS |  |
The BQ25896RTWT is a highly integrated battery charger IC from Texas Instruments for single-cell Lithium Ion/Polymer batteries. It supports up to 3A charge current and features an I2C interface for flexible control. Protection includes over current and over temperature. Operating from -40°C to 85°C, it comes in a 24-WFQFN exposed pad package, ideal for modern portable electronics.
- High charge current: 3A enables fast charging.
- I2C interface: allows dynamic programming and monitoring.
- Advanced protection: over current and over temperature.
- Wide temperature range: -40°C to 85°C for diverse applications.
Smartphones and Tablets
Charge single-cell Li-Ion/Polymer batteries with up to 3A via I2C-controlled charging profiles.
Portable Power Banks
Implement fast charging in power banks with I2C for dynamic current adjustment and over current protection.
Digital Cameras
Power mirrorless cameras and drones with high-capacity single-cell packs, using I2C for status monitoring.
Handheld Gaming Consoles
Charge Li-Polymer batteries in gaming devices with 3A current for rapid turnaround.
IoT Hubs
Power smart home hubs and voice assistants with reliable single-cell charging and over temperature protection.
- Q: What battery chemistry does the BQ25896RTWT support?
- A: It supports Lithium Ion/Polymer batteries.
- Q: How many cells can it charge?
- A: It is designed for a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 3A.
- Q: What fault protection is included?
- A: It includes Over Current and Over Temperature protection.
- Q: What interface does it use?
- A: It uses an I2C interface for control.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C (TA).
