Texas Instruments BQ25960HYBGR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.33 | $4.33 |
| 15+ | $4.20 | $63.00 |
| 25+ | $4.10 | $102.50 |
| 50+ | $3.88 | $194.00 |
| 100+ | $3.42 | $342.00 |
| N+ | $0.68 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Timer, Voltage |
| Fault Protection | Over Current, Over Temperature, Over-Under Voltage, Reverse Current |
| Charge Current - Max | 8A |
| Battery Pack Voltage | 4.77V (Max) |
| Voltage - Supply (Max) | 12V |
| Interface | I2C |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

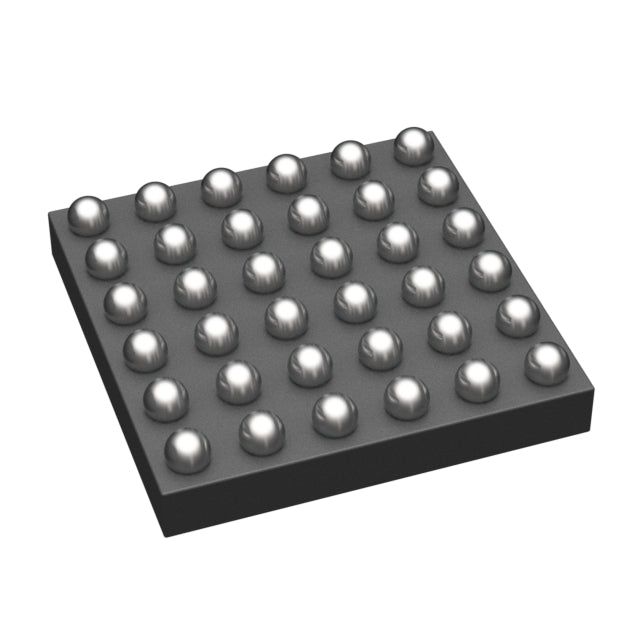

| Package / Case | 36-XFBGA, DSBGA |
| Supplier Device Package | 36-DSBGA (2.63x2.46) |
| ROHS |  |
The BQ25960HYBGR from Texas Instruments is a high-performance switch-mode charger for single-cell Lithium Ion/Polymer batteries. It supports an impressive 8A maximum charge current for a battery voltage up to 4.77V. The device features a comprehensive protection suite including Over Current, Over Temperature, Over-Under Voltage, and Reverse Current protection. Controlled via an I2C interface, it is ideal for fast-charging applications in smartphones, tablets, and other high-capacity portable electronics. The 36-XFBGA package enables a compact layout.
- Ultra-Fast Charging: The 8A charge current dramatically reduces charging time for high-capacity batteries.
- Advanced Digital Control: I2C interface allows for dynamic adjustment of charging parameters and status monitoring.
- Multi-Layer Protection: Over Current, Over Temperature, Over-Under Voltage, and Reverse Current protections ensure safe operation.
- High Efficiency: Switch-mode architecture minimizes power loss during high-current charging.
Fast-Charging Smartphones
The BQ25960HYBGR is engineered for high-current charging up to 8A, enabling rapid charging of large-capacity single-cell Lithium Polymer batteries in flagship smartphones.
High-Capacity Power Banks
For power banks that need to recharge quickly, this charger's high current capability and I2C control allow for efficient and safe high-speed charging.
Tablets and Laptops
Large-format portable devices with single-cell batteries benefit from the 8A charge current, significantly reducing charging time compared to standard chargers.
Drones and Robotics
High-drain devices like drones require fast turnaround. The BQ25960HYBGR's high current and robust protection suite make it suitable for demanding applications.
Portable Gaming Consoles
Gaming handhelds with high power consumption need quick recharging. The 8A capability and I2C interface allow for optimized charging profiles.
- Q: What battery chemistry does the BQ25960HYBGR support?
- A: It supports Lithium Ion/Polymer batteries.
- Q: How many cells can it charge?
- A: It is designed for a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 8A.
- Q: What is the battery voltage?
- A: The battery voltage is 4.77V (Max).
- Q: What fault protections are included?
- A: It includes Over Current, Over Temperature, Over-Under Voltage, and Reverse Current protection.
- Q: What interface does it use?
- A: It uses an I2C interface.
