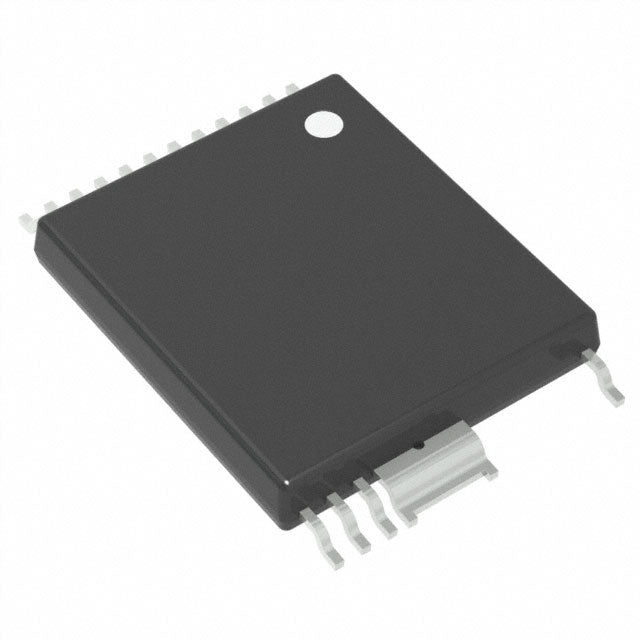

Power Integrations BRD1167C-TL
Regular price
$2.75
Regular price
$2.89
Sale price
$2.75
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.75 | $2.75 |
| 15+ | $2.66 | $39.90 |
| 25+ | $2.60 | $65.00 |
| 50+ | $2.46 | $123.00 |
| 100+ | $2.17 | $217.00 |
| N+ | $0.43 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | BridgeSwitch |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Half Bridge |
| Applications | DC Motors, General Purpose |
| Interface | Logic, PWM |
| Load Type | Capacitive and Resistive |
| Technology | Power MOSFET |
| Rds On (Typ) | 470mOhm LS + HS |
| Current - Output / Channel | 11.5A |
| Current - Peak Output | - |
| Voltage - Supply | - |
| Voltage - Load | 600V |
| Features | Bootstrap Circuit |
| Fault Protection | Current Limiting, Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads |
| Supplier Device Package | InSOP-24C |
| ROHS |  |
BRD1167C-TL.pdf
×
