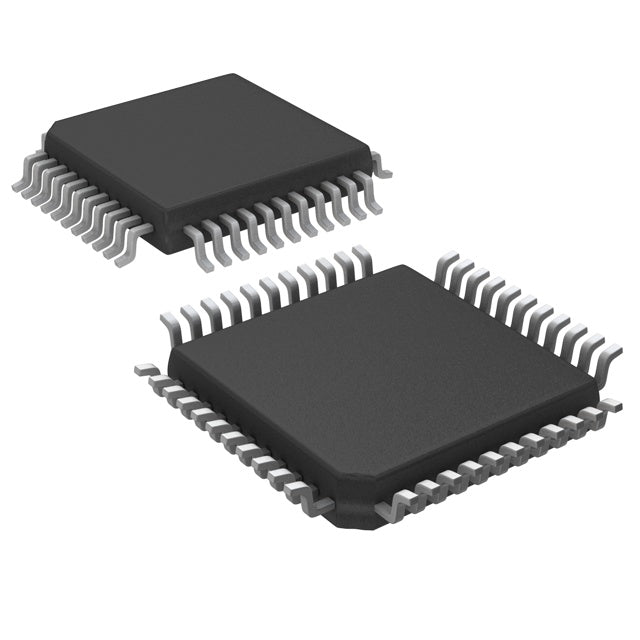

Infineon Technologies C505CA4EMCAKXUMA1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,887.50 | Dhs. 355,887.50 |
| 15+ | Dhs. 344,648.95 | Dhs. 5,169,734.25 |
| 25+ | Dhs. 337,156.58 | Dhs. 8,428,914.50 |
| 50+ | Dhs. 318,425.66 | Dhs. 15,921,283.00 |
| 100+ | Dhs. 280,963.82 | Dhs. 28,096,382.00 |
| N+ | Dhs. 56,192.76 | Price Inquiry |
Request Quote / Inquiry
The C505CA4EMCAKXUMA1 is a high-performance 8-bit microcontroller from Infineon Technologies, designed for demanding embedded and automotive applications. Built on the proven C500 core architecture, this MCU delivers reliable performance at 20MHz with comprehensive peripheral integration.
Key Features & Benefits
- Robust Processing Power: 8-bit C500 core running at 20MHz ensures efficient execution for real-time control applications
- Generous Memory: 32KB OTP program memory and 1.25K x 8 RAM provide ample space for complex firmware
- Advanced Connectivity: Integrated CANbus, EBI/EMI, and UART/USART interfaces enable seamless communication in automotive and industrial networks
- Rich Peripheral Set: Includes POR, PWM, and WDT for enhanced system reliability and control
- Flexible I/O: 34 general-purpose I/O pins accommodate diverse interfacing requirements
- Precision Analog: 8-channel 10-bit A/D converter for accurate sensor data acquisition
- Wide Operating Range: Functions reliably from -40°C to 125°C, ideal for harsh automotive environments
- Surface Mount Package: PG-MQFP-44-2 (44-QFP) package optimized for automated assembly
Typical Applications
This microcontroller excels in automotive body control modules, industrial automation systems, motor control applications, and embedded systems requiring CANbus communication. The OTP memory ensures code security while the automotive-grade temperature range guarantees operation in extreme conditions.
Why Choose HQICKEY?
At HQICKEY, we specialize in authentic semiconductor sourcing with comprehensive lifecycle support. Our commitment to quality ensures you receive genuine Infineon components with full traceability and technical support.
Related Resources
Explore our complete range of Microcontrollers for your embedded system needs. Stay informed with the latest industry insights and technical articles on our News & Technical Blog.
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | C5xx/C8xx |
| Packaging | | Tape & Reel (TR) |
| Core Processor | C500 |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | CANbus, EBI/EMI, UART/USART |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 34 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | OTP |
| EEPROM Size | - |
| RAM Size | 1.25K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.25V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-MQFP-44-2 |
| Package / Case | 44-QFP |
