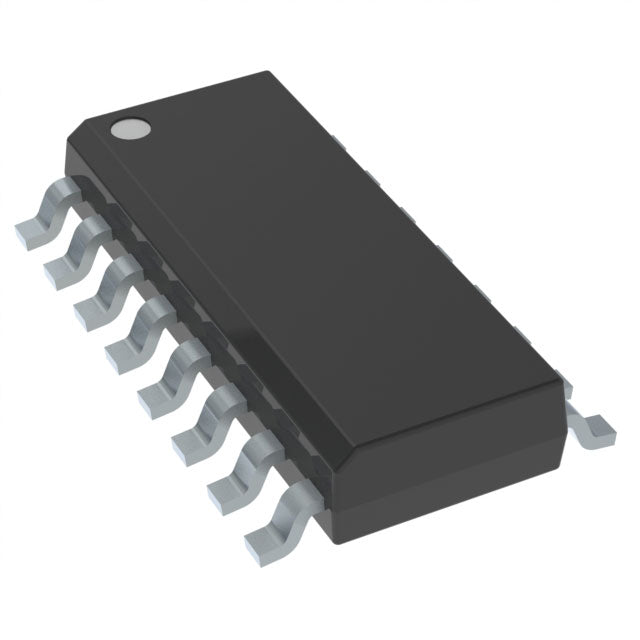

Texas Instruments CD4053BNSR
Regular price
$0.63
Regular price
$0.66
Sale price
$0.63
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.63 | $0.63 |
| 15+ | $0.61 | $9.15 |
| 25+ | $0.59 | $14.75 |
| 50+ | $0.56 | $28.00 |
| 100+ | $0.50 | $50.00 |
| N+ | $0.10 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 3 |
| On-State Resistance (Max) | 240Ohm |
| Channel-to-Channel Matching (ΔRon) | 5Ohm |
| Voltage - Supply, Single (V+) | 3V ~ 20V |
| Voltage - Supply, Dual (V±) | ±2.5V ~ 9V |
| Switch Time (Ton, Toff) (Max) | - |
| -3db Bandwidth | 30MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 0.2pF, 9pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -40dB @ 6MHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 16-SOIC (0.209", 5.30mm Width) |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
×
