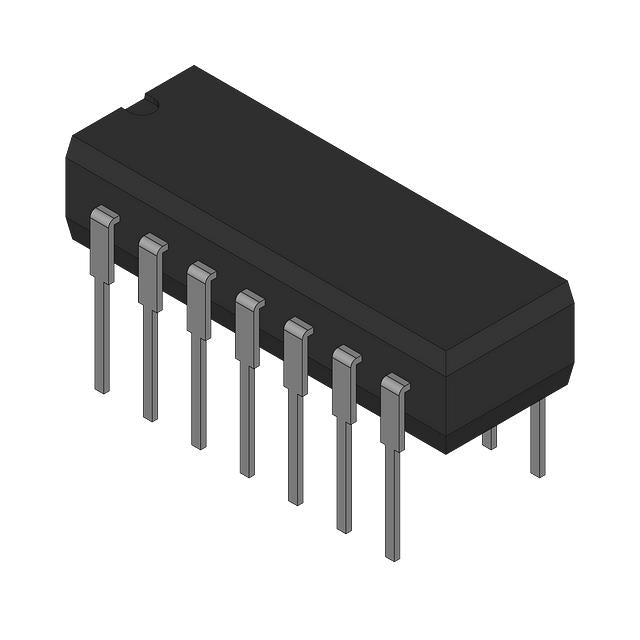

Harris Corporation CD54AC86F3A
Regular price
$7.12
Regular price
$1.78
Sale price
$7.12
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.12 | $7.12 |
| 15+ | $1.64 | $24.60 |
| 25+ | $1.60 | $40.00 |
| 50+ | $1.51 | $75.50 |
| 100+ | $1.34 | $134.00 |
| N+ | $0.27 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Harris Corporation |
| Product Series | |
| Packaging | Bulk | |
| Logic Type | XOR (Exclusive OR) |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 1.5V ~ 5.5V |
| Current - Quiescent (Max) | 4 µA |
| Current - Output High, Low | 24mA, 24mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 10.8ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 14-CERDIP |
| Supplier Device Package | 14-CDIP (0.300", 7.62mm) |
CD54AC86F3A.pdf
×
