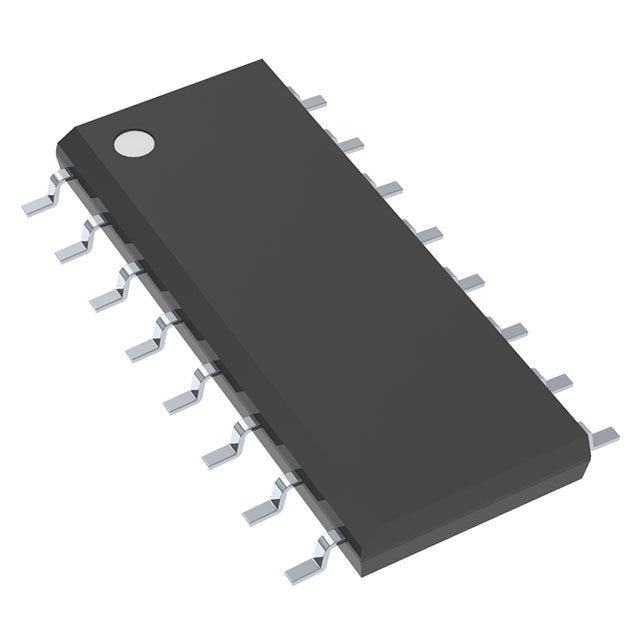

Texas Instruments CD74HCT7046AM96
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.90 | $2.90 |
| 15+ | $2.81 | $42.15 |
| 25+ | $2.75 | $68.75 |
| 50+ | $2.59 | $129.50 |
| 100+ | $2.29 | $229.00 |
| N+ | $0.46 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74HCT |
| Packaging | Marketplace | Cut Tape (CT) |
| Type | Phase Lock Loop (PLL) |
| PLL | Yes |
| Input | CMOS |
| Output | CMOS |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:2 |
| Differential - Input:Output | No/No |
| Frequency - Max | 38MHz |
| Divider/Multiplier | No/No |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -55°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
The CD74HCT7046AM96 from Texas Instruments is a Phase Lock Loop (PLL) IC designed for precise frequency and phase control in electronic systems. It features a single circuit that accepts CMOS inputs and provides CMOS outputs, with a maximum frequency of 38MHz. This PLL is ideal for frequency synthesis, clock recovery, and motor speed control applications. It operates over an extended temperature range of -55°C to 125°C, making it suitable for harsh environments. The 16-SOIC package ensures easy integration into standard PCB designs.
- Extended Temperature Range: Operates from -55°C to 125°C, suitable for military, aerospace, and industrial applications.
- Complete PLL Solution: Integrates all necessary PLL components in a single IC, simplifying design and reducing component count.
- CMOS Compatibility: Accepts and outputs CMOS levels, ensuring easy interfacing with standard digital logic.
- Proven Technology: From Texas Instruments, a trusted manufacturer with a long history of reliable IC production.
Frequency Synthesis
The CD74HCT7046AM96 can be used to generate stable output frequencies that are multiples of a reference frequency, ideal for communication systems and signal generators.
Clock Recovery in Data Communication
In serial data links, this PLL recovers the clock signal from the data stream, ensuring proper synchronization of received data in networking equipment.
Motor Speed Control
For motor control systems, the PLL can lock the motor speed to a reference frequency, providing precise speed regulation in industrial automation.
FM Demodulation
The PLL can be configured as an FM demodulator, extracting the modulating signal from a frequency-modulated carrier in radio receivers.
Phase Synchronization in Power Systems
In power electronics, this PLL synchronizes inverter output with the grid frequency, ensuring stable operation of renewable energy systems.
Aerospace and Defense
With its -55°C to 125°C temperature range, this PLL is suitable for military and aerospace applications requiring reliable operation in extreme conditions.
- Q: What type of device is the CD74HCT7046AM96?
- A: The CD74HCT7046AM96 is a Phase Lock Loop (PLL) IC from Texas Instruments, designed for phase-locked loop applications such as frequency synthesis and clock recovery.
- Q: Does it support PLL?
- A: Yes, it is a PLL device, meaning it contains a complete phase-locked loop circuit for locking an output frequency to an input reference.
- Q: What are the input and output types?
- A: Both the input and output types are CMOS. This means it accepts CMOS-level signals and provides CMOS-level outputs, compatible with standard digital logic.
- Q: How many circuits does it have?
- A: It contains 1 circuit, providing a single PLL channel for phase-locking applications.
- Q: What is the maximum frequency?
- A: The maximum operating frequency is 38MHz, suitable for many control and communication applications.
- Q: What is the operating temperature and package?
- A: It operates from -55°C to 125°C, making it suitable for extreme environments, and comes in a 16-SOIC (0.154", 3.90mm Width) package.
