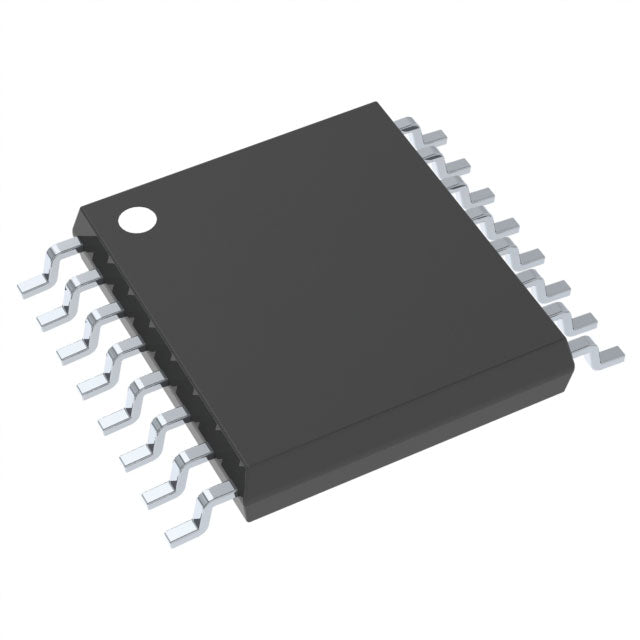

Texas Instruments CDCEL925PWR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.77 | $3.77 |
| 15+ | $3.65 | $54.75 |
| 25+ | $3.57 | $89.25 |
| 50+ | $3.37 | $168.50 |
| 100+ | $2.98 | $298.00 |
| N+ | $0.60 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Type | Clock/Frequency Synthesizer |
| PLL | Yes with Bypass |
| Input | LVCMOS, Crystal |
| Output | LVCMOS |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:5 |
| Differential - Input:Output | No/No |
| Frequency - Max | 230MHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 1.7V ~ 1.9V |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| ROHS |  |
The Texas Instruments CDCEL925PWR is a highly flexible Clock/Frequency Synthesizer, capable of generating output frequencies up to 230 MHz. It features a PLL with bypass mode and accepts either an LVCMOS input or a crystal. With a single circuit and LVCMOS output, it is designed for a broad range of applications, from high-performance computing to industrial and automotive systems. Its wide -40°C to 85°C temperature range and compact 16-TSSOP package make it a robust and versatile timing solution.
- Wide Frequency Range: Supports up to 230 MHz, accommodating high-speed digital systems and interfaces.
- Extended Temperature Range: Operates from -40°C to 85°C, suitable for industrial and automotive applications.
- Flexible Input Options: Accepts LVCMOS or crystal inputs, providing design flexibility for various clock sources.
- PLL Bypass Capability: Allows the PLL to be bypassed for direct clock distribution, enhancing system design options.
High-Performance Computing Clock Synthesis
The CDCEL925PWR generates a low-jitter 230MHz clock for CPUs, GPUs, and memory controllers, enhancing system performance and stability in servers and workstations.
Telecom and Datacom Timing
In optical transceivers and network processors, this synthesizer provides precise clock signals for SerDes and Ethernet interfaces, ensuring error-free data transmission.
Industrial Temperature Range Applications
With -40°C to 85°C operation, it is ideal for industrial automation, robotics, and outdoor networking equipment that require reliable timing in extreme conditions.
Broadcast Video and Audio Equipment
For professional cameras and audio interfaces, the device generates synchronized clocks for video processing and audio sampling, ensuring high-quality media production.
Automotive Electronics
In advanced driver-assistance systems (ADAS) and infotainment, the CDCEL925PWR provides stable clocks for sensors and processors, supporting reliable operation in automotive environments.
FPGA and ASIC Clocking
For FPGAs and custom ASICs, this synthesizer offers a flexible clock source, enabling designers to generate multiple frequencies from a single reference.
- Q: What type of device is the CDCEL925PWR?
- A: It is a Clock/Frequency Synthesizer from Texas Instruments.
- Q: Does the CDCEL925PWR have a PLL?
- A: Yes, it has a PLL with bypass capability, allowing the PLL to be used or bypassed as needed.
- Q: What are the input and output types?
- A: The input can be LVCMOS or a Crystal, and the output is LVCMOS.
- Q: How many circuits does it have?
- A: It has 1 circuit.
- Q: What is the maximum frequency?
- A: The maximum frequency is 230 MHz.
- Q: What is the operating temperature and package?
- A: It operates from -40°C to 85°C and comes in a 16-TSSOP (0.173", 4.40mm Width) package.
