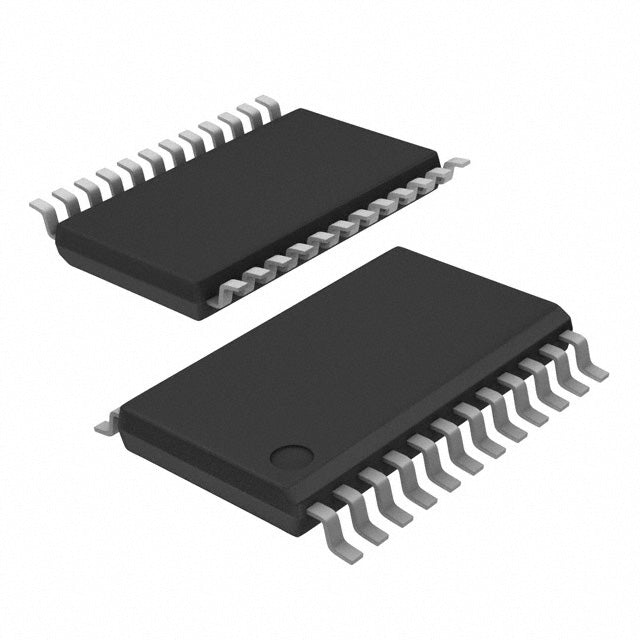

Texas Instruments CDCEL949PWR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.80 | $4.80 |
| 15+ | $4.65 | $69.75 |
| 25+ | $4.55 | $113.75 |
| 50+ | $4.29 | $214.50 |
| 100+ | $3.79 | $379.00 |
| N+ | $0.76 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Cut Tape (CT) |
| Type | Clock/Frequency Synthesizer |
| PLL | Yes with Bypass |
| Input | LVCMOS, Crystal |
| Output | LVCMOS |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:9 |
| Differential - Input:Output | No/No |
| Frequency - Max | 230MHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 1.7V ~ 1.9V |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 24-TSSOP |
| ROHS |  |
The Texas Instruments CDCEL949PWR is a versatile Clock/Frequency Synthesizer designed for high-performance timing applications. With a single circuit supporting frequencies up to 230MHz, it integrates a PLL with bypass for flexible clock generation. It accepts LVCMOS or crystal inputs and delivers LVCMOS outputs, ensuring compatibility with a wide range of digital systems. Operating across -40°C to 85°C, this device is packaged in a compact 24-TSSOP, making it ideal for telecom, networking, and industrial applications.
- High-Frequency Precision: Supports up to 230MHz, enabling high-speed clock generation for demanding applications.
- Flexible PLL with Bypass: Allows both synthesized and direct clock paths, providing design versatility.
- Wide Temperature Range: Operates from -40°C to 85°C, suitable for industrial and automotive environments.
- Compact TSSOP Package: Saves board space in space-constrained designs.
Telecom Clock Generation
The CDCEL949PWR's 230MHz output and LVCMOS interface make it ideal for generating clocks in telecom infrastructure, ensuring reliable data transmission and synchronization.
Networking Equipment Timing
With its PLL with bypass, this synthesizer can provide clean, low-jitter clocks for networking switches and routers, supporting high-speed Ethernet and optical networking standards.
Processor Clock Generation
Generate stable processor clocks up to 230MHz for embedded systems and industrial controllers, ensuring precise timing for critical operations.
Audio/Video Synchronization
Use the CDCEL949PWR to generate synchronized clocks for audio and video processing, reducing artifacts and ensuring smooth playback in multimedia systems.
Industrial Timing Solutions
Its wide temperature range (-40°C to 85°C) and TSSOP package make it suitable for industrial automation, providing robust timing in harsh environments.
Consumer Electronics
Generate multiple clock frequencies for consumer devices like set-top boxes and gaming consoles, leveraging the crystal input for cost-effective frequency synthesis.
- Q: What type of device is the CDCEL949PWR?
- A: The CDCEL949PWR is a Clock/Frequency Synthesizer from Texas Instruments, designed for generating precise clock signals.
- Q: Does the CDCEL949PWR support PLL?
- A: Yes, it features a PLL with bypass capability, allowing flexible clock generation and direct clock distribution when needed.
- Q: What are the input and output types?
- A: It accepts LVCMOS or Crystal inputs and provides LVCMOS outputs, making it compatible with standard digital logic.
- Q: How many circuits does it have and what is the maximum frequency?
- A: It has 1 circuit and supports a maximum frequency of 230MHz, suitable for high-speed applications.
- Q: What is the supply voltage and operating temperature range?
- A: The operating temperature range is -40°C to 85°C. The supply voltage is not specified in the provided data.
- Q: What package is the CDCEL949PWR available in?
- A: It comes in a 24-TSSOP package with a 0.173" (4.40mm) width.
