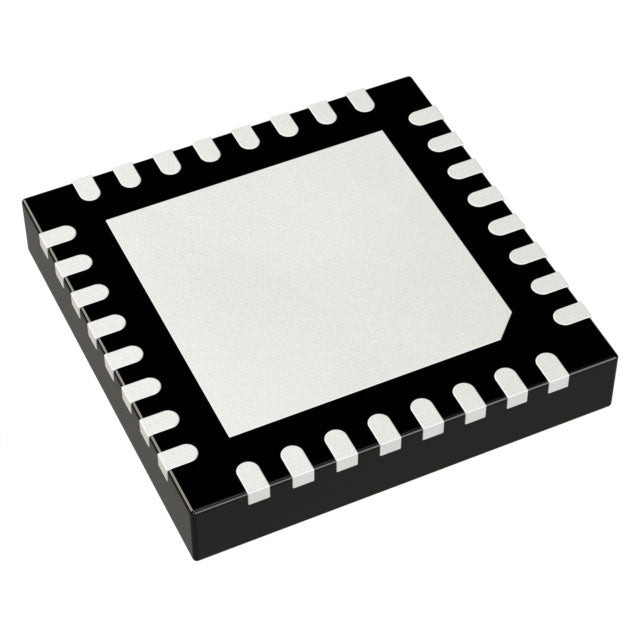

Texas Instruments CDCM9102RHBT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.15 | $5.15 |
| 15+ | $4.99 | $74.85 |
| 25+ | $4.88 | $122.00 |
| 50+ | $4.61 | $230.50 |
| 100+ | $4.07 | $407.00 |
| N+ | $0.81 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Type | Clock Generator |
| PLL | No |
| Input | Crystal |
| Output | LVCMOS, LVDS, LVPECL |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:3 |
| Differential - Input:Output | No/Yes |
| Frequency - Max | 100MHz |
| Divider/Multiplier | No/No |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VQFN (5x5) |
| ROHS |  |
The CDCM9102RHBT from Texas Instruments is a versatile clock generator that accepts a crystal input and outputs LVCMOS, LVDS, or LVPECL signals up to 100MHz. With one circuit and a wide temperature range, it is perfect for distributing clean clocks in various electronic systems.
- Multiple Output Formats: Supports LVCMOS, LVDS, and LVPECL for design flexibility.
- Low Skew: Ensures synchronized clock distribution across multiple outputs.
- Wide Temperature Range: Operates from -40°C to 85°C.
- Compact QFN Package: 32-VFQFN saves board space.
FPGA Clock Distribution
Provides multiple low-skew clocks for FPGA designs, ensuring synchronous operation of logic blocks.
Processor Clock Generation
Generates reference clocks for microprocessors and DSPs, supporting reliable system operation.
Networking Equipment
Distributes timing signals in switches and routers, maintaining data integrity.
Audio/Video Interfaces
Creates clocks for HDMI, DisplayPort, and other multimedia interfaces.
Industrial Control Systems
Provides stable clocks for PLCs and motion controllers, ensuring precise timing.
Test and Measurement
Supplies reference clocks for data acquisition and signal analysis equipment.
- Q: What type of device is the CDCM9102RHBT?
- A: It is a Clock Generator designed to produce multiple clock outputs from a single crystal input.
- Q: Does the CDCM9102RHBT include a PLL?
- A: No, it does not have an integrated PLL.
- Q: What are the input and output types?
- A: It accepts a Crystal input and provides LVCMOS, LVDS, and LVPECL outputs.
- Q: How many circuits does it have?
- A: It contains 1 circuit.
- Q: What is the maximum output frequency?
- A: The maximum frequency is 100MHz.
- Q: What is the operating temperature range and package?
- A: It operates from -40°C to 85°C and comes in a 32-VFQFN Exposed Pad package.
