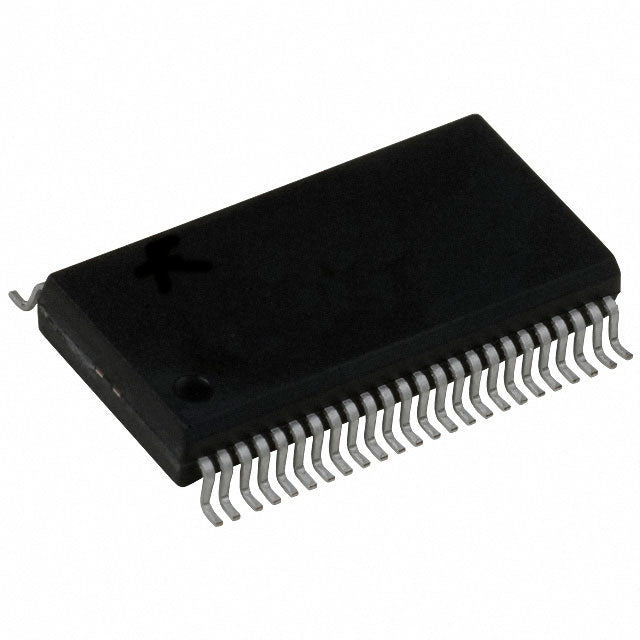

National Semiconductor COP8CBE9IMT9
Regular price
$28.72
Regular price
$15.69
Sale price
$28.72
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $28.72 | $28.72 |
| 15+ | $14.43 | $216.45 |
| 25+ | $14.12 | $353.00 |
| 50+ | $13.34 | $667.00 |
| 100+ | $11.77 | $1,177.00 |
| N+ | $2.35 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | National Semiconductor |
| Product Series | COP8™ 8C |
| Packaging | Bulk | |
| Core Processor | COP8 |
| Core Size | 8-Bit |
| Speed | 6.67MHz |
| Connectivity | Microwire/Plus (SPI), UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 39 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 16x10b |
| Oscillator Type | Internal |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-TSSOP |
| Package / Case | 48-TFSOP (0.240", 6.10mm Width) |
The National Semiconductor COP8CBE9IMT9 is an 8-bit MCU with a COP8 core at 6.67MHz. It offers 8KB flash and 256 bytes RAM, operating from 2.7V to 5.5V. Packaged in a 48-TFSOP, it includes brown-out detect, POR, PWM, and WDT for commercial embedded applications.
- Cost-effective 8-bit solution: Reduces BOM for high-volume consumer products.
- Wide voltage range (2.7V-5.5V): Supports battery and USB power.
- Integrated brown-out detection: Prevents system crashes during power dips.
- Compact 48-TFSOP: Saves PCB area in space-limited designs.
Consumer Electronics
0-70°C range and low cost make it ideal for remote controls and small appliances.
Office Equipment
PWM and WDT support printer and copier paper feed control.
Telecom Infrastructure
48-pin TFSOP and 5V operation suit line card monitoring circuits.
Battery Management
Low power consumption and brown-out detection protect Li-ion packs.
Point-of-Sale Terminals
Robust I/O and communication peripherals handle barcode scanners and PIN pads.
Lighting Controls
PWM outputs enable dimming for commercial LED drivers.
- Q: What is the core architecture?
- A: It uses the COP8 8-bit core running at 6.67MHz.
- Q: What is the operating temperature range?
- A: It operates from 0°C to 70°C, suitable for commercial applications.
- Q: What package is available?
- A: It comes in a 48-pin TFSOP package.
- Q: Does it have brown-out detection?
- A: Yes, it includes brown-out detect/reset for reliable power monitoring.
Base Product Number ：
COP8CBE9
