National Semiconductor COP8CCR9HVA8
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $54.16 | $54.16 |
| 15+ | $18.46 | $276.90 |
| 25+ | $18.05 | $451.25 |
| 50+ | $17.05 | $852.50 |
| 100+ | $15.05 | $1,505.00 |
| N+ | $3.01 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | National Semiconductor |
| Product Series | COP8™ 8C |
| Packaging | Bulk | |
| Core Processor | COP8 |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | Microwire/Plus (SPI), UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 37 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 16x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 44-PLCC (16.59x16.59) |
| Package / Case | 44-LCC (J-Lead) |

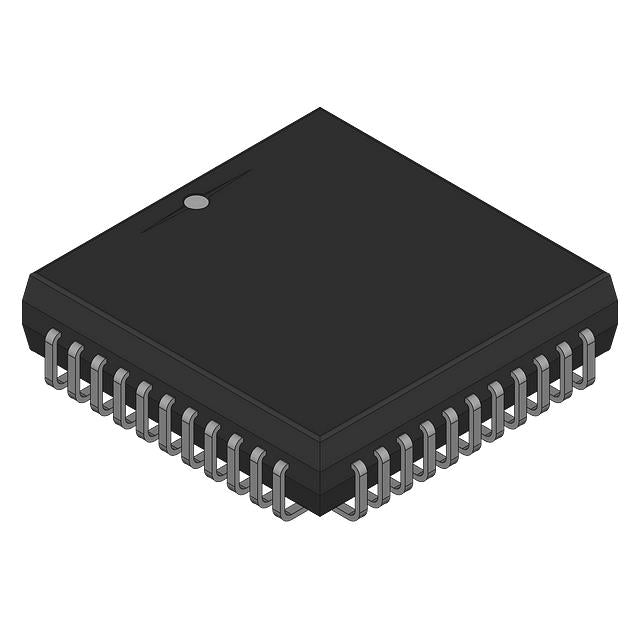

The COP8CCR9HVA8 from National Semiconductor is an 8-bit microcontroller with a COP8 core running at 20MHz. It features 32KB program memory, 1K RAM, and includes Brown-out Detect/Reset, POR, PWM, and WDT. Operating from 2.7V to 5.5V, it comes in a 44-LCC package for versatile embedded applications.
- Wide voltage range (2.7V-5.5V): Supports multiple power sources including batteries.
- 20MHz speed: Efficient for real-time control tasks.
- 32KB flash: Ample space for complex applications.
- Extended temperature range (-40°C to 85°C): Suitable for industrial environments.
Battery-Powered Devices
The 2.7V-5.5V range supports Li-ion and alkaline battery operation, with low-power modes for extended life.
Automotive Sensors
Wide temperature range and WDT make it reliable for under-hood sensor modules.
Industrial Process Control
PWM outputs drive valves and actuators in process control loops.
Consumer Electronics
32KB flash allows feature-rich remote controls and small appliances.
HVAC Systems
Handles thermostat control with multiple sensor inputs and fan speed regulation.
Portable Instruments
Compact 44-LCC package fits handheld meters and data loggers.
- Q: What core processor does the COP8CCR9HVA8 use?
- A: It uses the COP8 core.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
- Q: How much RAM is available?
- A: It has 1K x 8 of RAM.
- Q: What is the supply voltage range?
- A: It operates from 2.7V to 5.5V.
