National Semiconductor COP8SBR9LVA8
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $52.16 | $52.16 |
| 15+ | $12.00 | $180.00 |
| 25+ | $11.74 | $293.50 |
| 50+ | $11.08 | $554.00 |
| 100+ | $9.78 | $978.00 |
| N+ | $1.96 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | National Semiconductor |
| Product Series | COP8™ 8S |
| Packaging | Bulk | |
| Core Processor | COP8 |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | Microwire/Plus (SPI), UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 59 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 68-PLCC (24.23x24.23) |
| Package / Case | 68-LCC (J-Lead) |

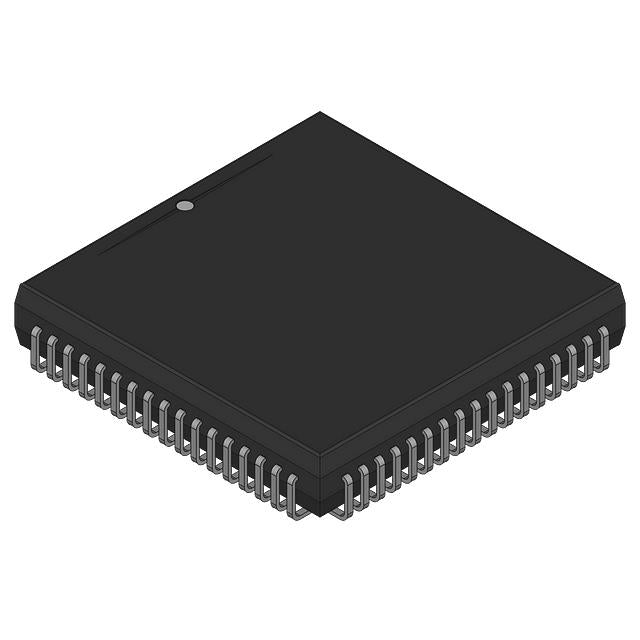

The National Semiconductor COP8SBR9LVA8 is an 8-bit MCU featuring the COP8 core at 20 MHz. It includes 32 KB program memory and 1 KB RAM, operating from 2.7V to 5.5V. Packaged in a 68-LCC (J-Lead), it offers Brown-out Detect, POR, PWM, and WDT for reliable embedded control.
- High-Speed 8-bit: 20 MHz clock provides faster processing than typical 8-bit MCUs.
- Wide Voltage Support: 2.7V-5.5V allows flexible power design.
- Compact Package: 68-LCC J-Lead saves PCB space.
- Integrated Safety: Brown-out detect, POR, and WDT enhance system reliability.
Legacy Industrial Controllers
The 20 MHz COP8 core and 32 KB flash provide a drop-in upgrade path for existing 8-bit designs.
Consumer Appliances
2.7V-5.5V operation and PWM support motor control in fans, blenders, and coffee makers.
Simple Sensor Interfaces
Brown-out detection and WDT ensure reliable operation in temperature and pressure monitoring.
Battery Management
Low-voltage operation (2.7V) and low pin count make it suitable for simple battery protection circuits.
Lighting Control
PWM outputs enable dimming and color control in LED drivers.
Security Systems
Robust reset features and wide temperature range support alarm panels and access control.
- Q: What is the core processor?
- A: It uses the COP8 8-bit core.
- Q: What is the maximum speed?
- A: It operates at up to 20 MHz.
- Q: How much flash memory is available?
- A: It has 32 KB of program memory.
- Q: What package is it available in?
- A: It comes in a 68-LCC (J-Lead) package.
