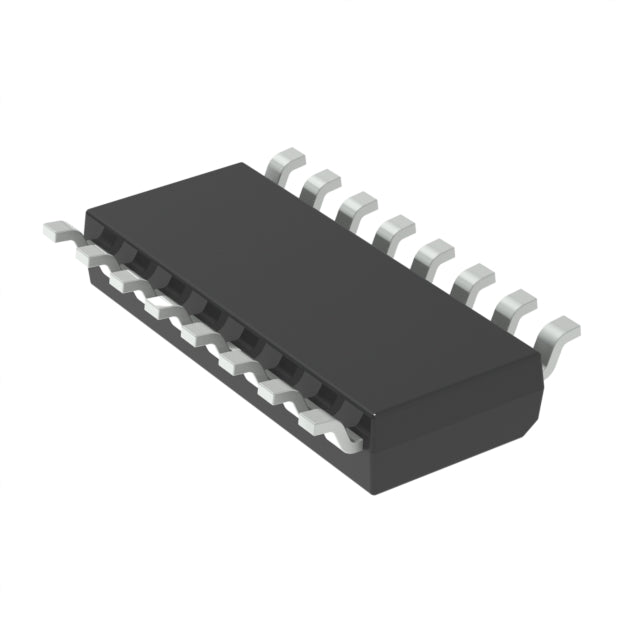

onsemi CS51023AEDR16 PWM Controller IC
The CS51023AEDR16 from onsemi is a high-performance isolated forward topology PWM controller designed for AC-DC and DC-DC power conversion applications. This advanced controller IC delivers precise power management with integrated protection features, making it ideal for industrial, telecommunications, and automotive power supply designs.
Key Features:
- High Switching Frequency: 1MHz operation enables compact transformer and filter designs
- Wide Supply Voltage Range: 7.7V to 20V with 13V start-up voltage
- Comprehensive Protection: Current limiting and over-voltage protection safeguard your power supply
- Advanced Control: Frequency control, soft start, and synchronization capabilities
- Isolated Forward Topology: Provides galvanic isolation for enhanced safety
- Extended Temperature Range: -40°C to 150°C (TJ) for demanding environments
- Surface Mount Package: 16-SOIC for automated assembly and space-efficient designs
Applications:
- Industrial power supplies
- Telecommunications equipment
- Automotive electronics
- Battery chargers
- DC-DC converters
- Isolated power modules
Technical Specifications:
Why Choose CS51023AEDR16?
This PWM controller combines high efficiency, robust protection, and flexible control features in a compact surface-mount package. The 1MHz switching frequency allows for smaller magnetic components, reducing overall system size and cost. With comprehensive fault protection and wide operating temperature range, the CS51023AEDR16 ensures reliable operation in the most demanding applications.
The CS51023AEDR16 features advanced current limiting and over-voltage protection mechanisms that safeguard both the controller and downstream components. The soft-start function minimizes inrush current during power-up, extending component lifespan and improving system reliability. Synchronization capability enables multi-phase designs for higher power applications.
Designed for forward converter topologies, this IC provides optimal performance in isolated power supply designs where galvanic isolation is required for safety or noise immunity. The wide input voltage range accommodates various input sources, while the precise frequency control ensures consistent operation across different load conditions.
Available in Tape & Reel packaging for high-volume production. Authorized distributor with full traceability and quality assurance. All components are sourced directly from onsemi with complete documentation and compliance certification.
Related Products & Resources:
Explore our complete range of AC DC Converters, Offline Switchers for more power management solutions. Visit HQICKEY to browse our full catalog of semiconductor components and programmable logic devices. Stay updated with the latest industry insights and product announcements on our News Blog.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Forward |
| Voltage - Start Up | 13 V |
| Voltage - Supply (Vcc/Vdd) | 7.7V ~ 20V |
| Duty Cycle | 77% |
| Frequency - Switching | 1MHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Voltage |
| Control Features | Frequency Control, Soft Start, Sync |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
