onsemi CS51024AEDR16
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 14.61 | Dhs. 14.61 |
| 15+ | Dhs. 14.13 | Dhs. 211.95 |
| 25+ | Dhs. 13.82 | Dhs. 345.50 |
| 50+ | Dhs. 13.06 | Dhs. 653.00 |
| 100+ | Dhs. 11.52 | Dhs. 1,152.00 |
| N+ | Dhs. 2.30 | Price Inquiry |
Request Quote / Inquiry
CS51024AEDR16 PWM Controller IC - onsemi
The CS51024AEDR16 is a high-performance isolated forward topology PWM controller from onsemi, designed for precision power management applications. This advanced controller IC features 1MHz switching frequency, comprehensive fault protection including current limiting and over-voltage protection, and operates across a wide temperature range from -40°C to 150°C.
Key Features
- High-Frequency Switching: 1MHz operation for compact power supply designs
- Wide Supply Voltage Range: 7.7V to 20V with 13V start-up voltage
- Advanced Protection: Current limiting and over-voltage fault protection
- Flexible Control: Frequency control and soft start capabilities
- High Duty Cycle: Up to 77% for efficient power conversion
- Industrial Grade: -40°C to 150°C junction temperature rating
Applications
Ideal for isolated DC-DC converters, industrial power supplies, telecommunications equipment, automotive electronics, and high-reliability power management systems requiring precise control and robust protection features.
Package Information

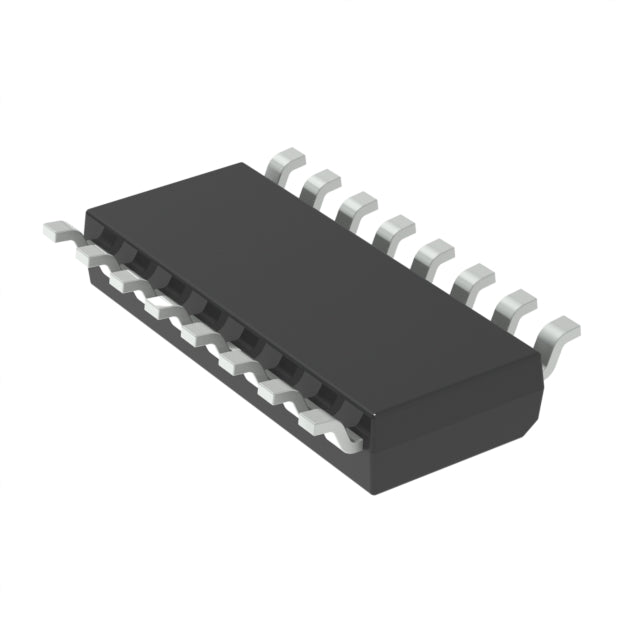

Surface mount 16-SOIC package (0.154" / 3.90mm width) supplied in tape and reel format for automated assembly processes.
Why Choose HQICKEY for Your Power Management Components?
At HQICKEY, we specialize in providing high-quality semiconductor components with full traceability and long lifecycle availability. Our extensive inventory of power management ICs ensures you get the components you need, when you need them, backed by our commitment to engineering excellence and customer support.
Related Products & Resources
- Browse our complete AC DC Converters, Offline Switchers collection for more power management solutions
- Visit HQICKEY homepage to explore our full range of semiconductor components
- Read our technical blog for application notes, design guides, and industry insights
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Forward |
| Voltage - Start Up | 13 V |
| Voltage - Supply (Vcc/Vdd) | 7.7V ~ 20V |
| Duty Cycle | 77% |
| Frequency - Switching | 1MHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Voltage |
| Control Features | Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
