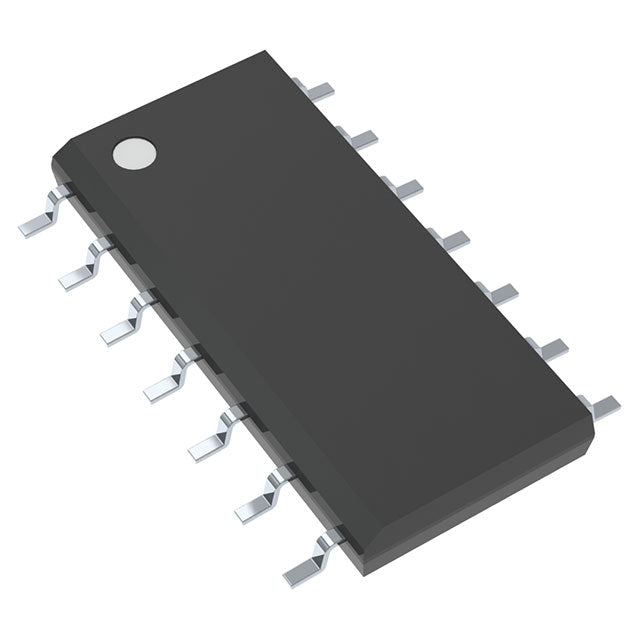

onsemi CS8120YDR14
Regular price
$1.89
Regular price
$1.99
Sale price
$1.89
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.89 | $1.89 |
| 15+ | $1.83 | $27.45 |
| 25+ | $1.79 | $44.75 |
| 50+ | $1.69 | $84.50 |
| 100+ | $1.49 | $149.00 |
| N+ | $0.30 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Obsolete |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 26V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.5V @ 200mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 650 μA |
| Current - Supply (Max) | 15 mA |
| PSRR | 70dB (120Hz) |
| Control Features | Enable, Reset |
| Protection Features | Over Temperature, Over Voltage, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
CS8120YDR14.pdf
×
