Harris Corporation CS82C84A96
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.02 | $2.02 |
| 15+ | $1.96 | $29.40 |
| 25+ | $1.92 | $48.00 |
| 50+ | $1.81 | $90.50 |
| 100+ | $1.60 | $160.00 |
| N+ | $0.32 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Harris Corporation |
| Product Series | |
| Packaging | Bulk | |
| Type | Clock Generator |
| PLL | No |
| Input | TTL |
| Output | TTL |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:3 |
| Differential - Input:Output | No/No |
| Frequency - Max | 25MHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

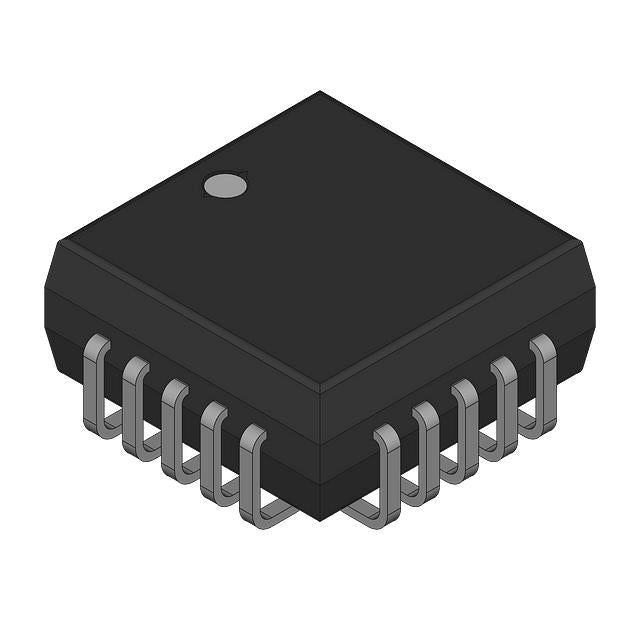

| Package / Case | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (9x9) |
The Harris Corporation CS82C84A96 is a straightforward clock generator designed for simple digital systems. It features a single circuit with TTL input and output, operating at frequencies up to 25MHz. Without a PLL, this device provides a direct and reliable clock source. Housed in a 20-LCC (J-Lead) package, it operates in a commercial temperature range of 0°C to 70°C.
- Simple Architecture: No PLL means easier design and lower cost.
- TTL Compatibility: Works directly with standard TTL logic families.
- Reliable Operation: Provides a stable clock source for legacy systems.
- Standard Package: 20-LCC package is widely available and easy to solder.
Legacy Processor Systems
Generate clock signals for older microprocessors and peripheral chips. The TTL interface and 25MHz frequency are compatible with many legacy designs.
Embedded Controllers
Provide timing for embedded controllers in industrial and automotive applications. The 0°C to 70°C temperature range is suitable for commercial environments.
Simple Digital Systems
Generate basic clock signals for digital logic circuits. The lack of PLL simplifies the design and reduces cost.
Bus Interface Timing
Provide clock signals for bus interface logic. The TTL outputs ensure compatibility with standard logic families.
Replacement for Obsolete Parts
Use as a drop-in replacement for older clock generator ICs. The 20-LCC package and TTL interface match many legacy footprints.
Educational Projects
Use in educational settings to teach clock generation concepts. The simple architecture makes it easy to understand and implement.
- Q: What type of device is the CS82C84A96?
- A: It is a Clock Generator.
- Q: Does it have PLL support?
- A: No, it does not have a PLL.
- Q: What are the input and output types?
- A: It accepts TTL inputs and provides TTL outputs.
- Q: How many circuits does it have?
- A: It has 1 circuit.
- Q: What is the maximum frequency?
- A: The maximum frequency is 25MHz.
- Q: What is the package type?
- A: It comes in a 20-LCC (J-Lead) package.
