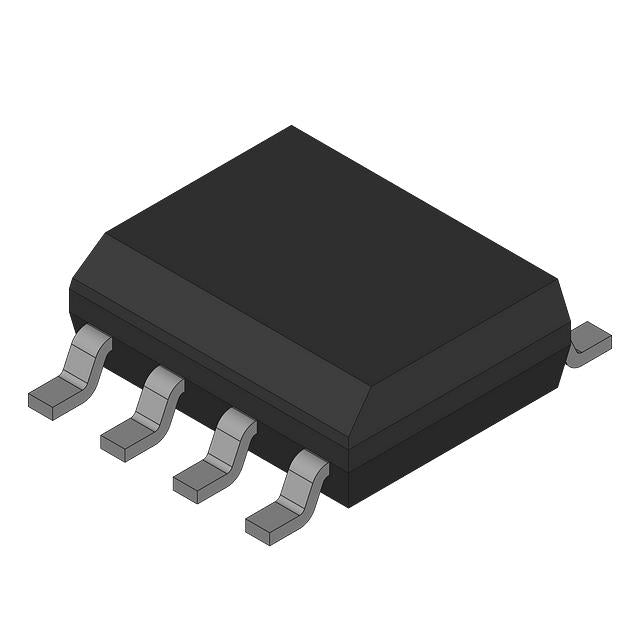

Cypress Semiconductor Corp CY2302SI-1
Regular price
$10.56
Regular price
$2.64
Sale price
$10.56
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.56 | $10.56 |
| 15+ | $2.43 | $36.45 |
| 25+ | $2.38 | $59.50 |
| 50+ | $2.24 | $112.00 |
| 100+ | $1.98 | $198.00 |
| N+ | $0.40 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Cypress Semiconductor Corp |
| Product Series | |
| Packaging | Bulk | |
| Type | Frequency Multiplier, Zero Delay Buffer |
| PLL | Yes |
| Input | LVCMOS, LVTTL |
| Output | LVCMOS |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:2 |
| Differential - Input:Output | No/No |
| Frequency - Max | 133MHz |
| Divider/Multiplier | Yes/Yes |
| Voltage - Supply | 3.135V ~ 3.465V, 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
The Cypress CY2302SI-1 is a Frequency Multiplier and Zero Delay Buffer with an integrated PLL. It accepts LVCMOS or LVTTL inputs and provides LVCMOS outputs up to 133MHz. With 1 circuit in an 8-SOIC package, it operates from -40°C to 85°C, making it suitable for automotive and industrial applications.
- Zero Delay Buffer: Ensures output clocks are phase-aligned with input, reducing timing errors.
- Frequency Multiplication: Generates higher frequencies from lower references, saving crystal costs.
- Wide Temperature Range: -40°C to 85°C for harsh environments.
- Small 8-SOIC Package: Minimizes PCB footprint.
Processor Clock Generation
Multiply a low-frequency reference to generate high-speed clocks for CPUs and memory controllers.
Zero Delay Buffering
Align output clocks with input, minimizing skew for synchronous systems.
Networking Equipment
Provide clean clocks for Ethernet PHYs and switches, ensuring reliable data transfer.
FPGA Systems
Generate multiple clock domains from a single source, simplifying board design.
Automotive Electronics
Wide temperature range supports engine control units and infotainment systems.
- Q: What type of device is the CY2302SI-1?
- A: It is a Frequency Multiplier and Zero Delay Buffer, providing low-skew clock distribution.
- Q: Does it have a PLL?
- A: Yes, it includes a PLL for frequency multiplication.
- Q: What are the input and output types?
- A: Inputs are LVCMOS or LVTTL, and outputs are LVCMOS.
- Q: How many circuits does it have?
- A: It has 1 circuit.
- Q: What is the maximum frequency?
- A: The maximum frequency is 133MHz.
- Q: What is the package and temperature range?
- A: It comes in an 8-SOIC package and operates from -40°C to 85°C.
